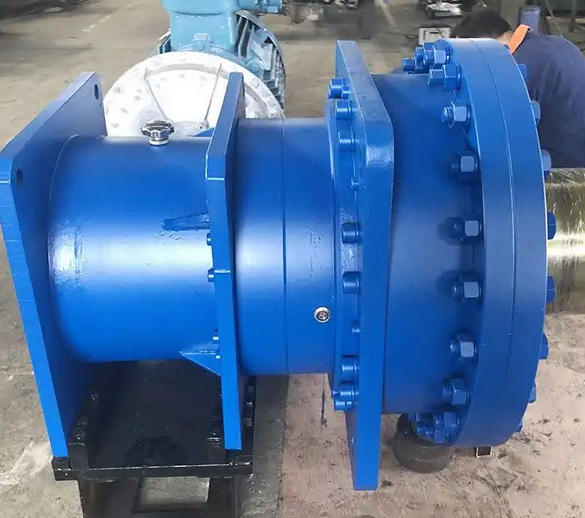

What are the steps required to replace the P3SA11 planetary gearbox filter

The following are the general steps for replacing the P3SA11 planetary gearbox filter:

1. Preparation work:

Confirm that the gearbox has stopped running and cut off the power to ensure safe operation.

Prepare the necessary tools such as wrenches, screwdrivers, etc., as well as new filter cartridges and seals.

Place an oil drum under the gearbox to collect the discharged lubricating oil.

2. Discharge lubricating oil:

Find the oil drain plug or oil drain ball valve of the gearbox filter, open it, and drain the lubricating oil in the filter cartridge into the oil drum. During the oil discharge process, be careful to avoid splashing the oil.

3. Disassemble the filter:

Remove the test hose from the filter cover (if any).

Use a suitable tool to clamp the cross slot of the filter cartridge or unscrew the screw that secures the filter cover, and rotate counterclockwise to remove the filter cover. Before disassembly, it is necessary to confirm whether the fastening ring between the upper cylinder and the cylinder is locked to prevent the upper cylinder from rotating during the disassembly process.

If it is difficult to remove the filter element, gently shake it to help remove it.

4. Cleaning and inspection:

If only the filter element needs to be replaced, the collection tray needs to be cleaned. Rotate the collection tray counterclockwise to remove it, clean it with detergent, and then reinstall it into the slot of the new filter element.

Check the old O-ring in the filter cover. If it is damaged or aged, it must be replaced. Use a suitable tool to remove the O-ring inside the filter cover, and then clean the filter cover with a cleaning agent.

Clean the sealing surface and threads of the upper cylinder, check if there are scratches on the effective sealing surface of the upper cylinder. If there are scratches, repair or replace the upper cylinder; Check if there are any settled pollutants at the bottom of the filter head. If so, clean the bottom with clean oil to ensure the cleanliness of the filter head.

5. Install a new filter element:

Insert the new O-ring into the O-ring groove of the filter cover, and apply a small amount of clean lubricating grease evenly on the exposed O-ring surface and threads to prevent damage to the O-ring or thread biting during installation.

Before installing the new filter element into the filter, please confirm that the O-ring at the bottom of the filter element is not missing or damaged. When installing the filter element, it should be aligned vertically with the center position to ensure that the filter element is accurately installed into the filter seat and in place.

6. Reinstall the filter:

Align the filter cover with the upper cylinder, rotate clockwise and tighten to ensure good sealing.

Connect the test hose on the filter cover (if any).

7. Add lubricating oil:

Fill the gearbox with lubricating oil that meets the requirements through the oil filling port, so that the oil level reaches the specified scale line.

8. Trial operation and inspection:

Connect the power supply, start the gearbox, and observe whether there is any leakage in the filter, including the connection between the filter cover and the cylinder, the test hose interface, and other parts.

Check if the pressure and flow rate of the lubricating oil are normal. If there are any abnormalities, stop the machine in time for inspection and troubleshooting.
