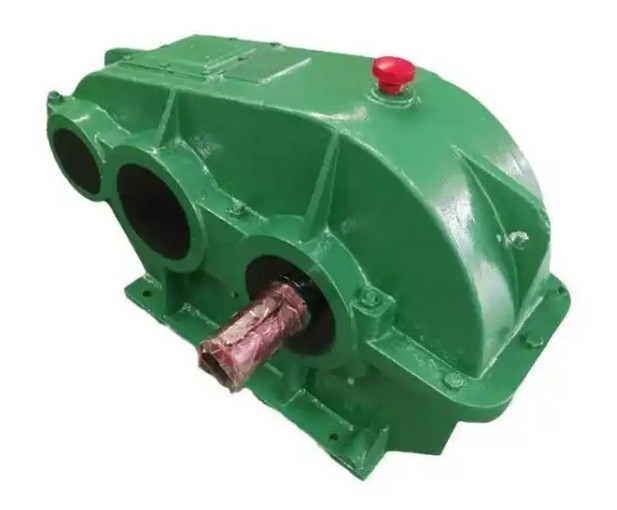

What effect does humidity have on the life of the ZQA350-12.64 reducer?

High humidity can significantly shorten the lifespan of ZQA350-12.64 gearbox, with the core being accelerated damage through three paths: lubrication failure, metal corrosion, and seal degradation. In long-term high humidity environments, the lifespan may drop to less than one-third of the design value.

1、 Humidity tolerance benchmark for ZQA350-12.64
Standard applicable: Relative humidity ≤ 85%, no condensation water

Material: Gear shaft 42CrMo, large gear ZG35CrMo (medium hard tooth surface), cast iron housing, conventional oil seal

Protection: default IP54 level, non waterproof type, only splash proof and dustproof

2、 The Four Deadly Effects of Excessive Humidity (Directly Shortening Life)
1. Emulsification failure of lubricating oil (most direct and fastest)
Water intrusion → emulsification, stratification, and sudden drop in viscosity of the oil → rupture of the lubricating film

Friction pair (gear/bearing) dry friction → pitting, bonding, and increased wear

Oil acidification → corrosion of metal surfaces, oil change cycle needs to be shortened by 30% -50%

2. Corrosion of metal parts (long-term irreversible)
Electrochemical corrosion occurs in gears, bearings, shafts, and casings

Rusting of tooth surface → Decreased transmission accuracy, increased noise, and decreased load capacity

Corrosion of bearing raceway/rolling elements → jamming, locking, early failure

Corrosion of cast iron box → leakage of sealing surface and decrease in structural strength

3. Deterioration of sealing system (water intrusion channel)
Oil seals/sealing rings accelerate aging, hardening, and cracking under high humidity

Sealing failure → continuous invasion of moisture/rainwater, forming a vicious cycle

The breathing valve is not dry → negative pressure inside the box sucks in humid air, causing condensation inside

4. Decrease in coordination accuracy and operational stability
Rust/wear causes an increase in gear mesh clearance and a decrease in coaxiality

Vibration intensifies → bearing fatigue, bolt loosening, box cracking

The overall lifespan drops sharply, and the failure rate increases significantly
