Recommend some application cases of WHC200-16-IV circular cylindrical worm gear reducer

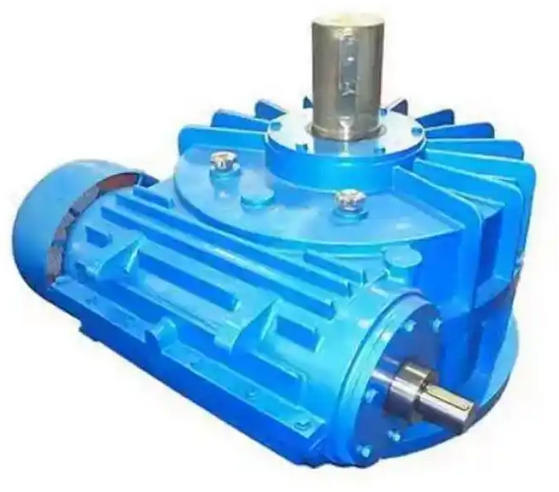

In WHC200-16-IV, 200 represents the center distance, 16 is the speed ratio, and IV corresponds to a specific assembly form. It has the characteristics of strong load-bearing capacity, high operating efficiency, and good stability. The maximum input power is 26KW and the maximum output torque is 2600N. m. It is suitable for heavy-duty deceleration scenarios in multiple fields such as metallurgy, mining, and chemical engineering. Specific application cases are as follows:

Metallurgical industry - Steel billet conveyor roller: In the hot rolling workshop of a steel plant in Wuxi, the steel billet conveyor roller needs to smoothly transport high-temperature steel billets to the next processing step. The roller conveyor is subjected to high temperature and heavy load conditions for a long time, and requires stable operating speed (to avoid steel billet deviation or collision). The WHC200-16-IV reducer is matched with the driving motor of the conveyor roller. With the appropriate speed ratio of 16, the high-speed speed of the motor is converted into the low-speed operation required by the roller. Its 2600N. m high torque can easily drive the roller to carry high-temperature steel billets. At the same time, the convex concave meshing tooth design reduces tooth surface wear, adapts to the continuous operation needs of the workshop, and ensures the stable operation of the steel billet conveyor line 24 hours a day.

Mining industry - small crusher transmission system: A jaw crusher from a small open-pit quarry in Xuzhou, Jiangsu, used for crushing building materials such as limestone. During the operation of the crusher, the motor power needs to be converted into low-speed high torque impact power for the crushing jaw plate, and the working conditions are characterized by frequent dust and strong vibration. The WHC200-16-IV reducer is installed between the motor and the main shaft of the crusher, which enhances the output torque through precise deceleration to meet the power requirements of jaw plate extrusion crushing. Its excellent tooth surface strength and liquid lubrication structure can reduce the wear of dust on transmission components. Even under frequent start stop conditions, it can maintain transmission stability and improve the operating efficiency of the crusher.

Crane Industry - Warehouse Small Bridge Crane: A small bridge crane used in an e-commerce logistics warehouse in Suzhou for cross regional lifting of goods inside the warehouse. It has a lifting capacity of about 5-8 tons and requires frequent lifting and translation of heavy objects, with high requirements for smooth and safe transmission. The lifting mechanism and trolley walking mechanism of the crane both use WHC200-16-IV reducer. The characteristic of its high-speed shaft that can operate in both directions is suitable for the switching of lifting and advancing/retreating actions of cranes. At the same time, its high load-bearing capacity ensures the stability of heavy objects when hovering, avoiding the shaking of heavy objects due to transmission failures and ensuring the safety of storage operations.
