Which scenarios are suitable for RF97-Y5.5-4P-NA54-180 reducer in the selection of small and medium-sized equipment

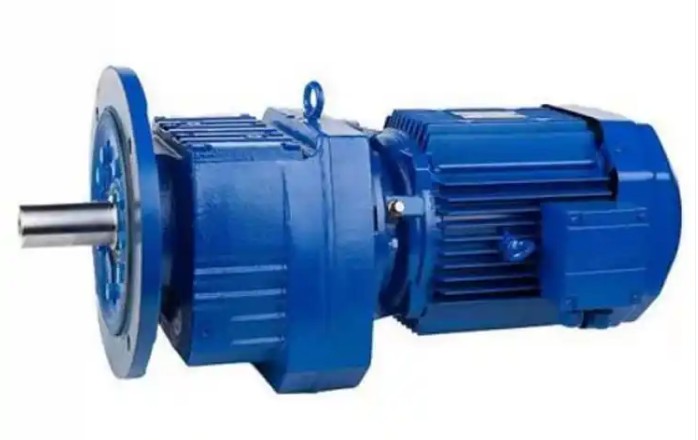

The RF97-Y5.5-4P-NA54-180 reducer belongs to the hard tooth helical gear reducer, and its core configuration corresponding to the model parameters is: RF series horizontal installation, compatible with 5.5kW 4-pole motor, output shaft installation form is NA54 (hollow shaft with locking plate), reduction ratio of 180, with strong load-bearing capacity, high transmission efficiency, and stable operation. In the selection of small and medium-sized equipment, it is suitable for the following application scenarios:

1. Low speed and high torque conveying equipment

The reduction ratio of this gearbox reaches 180, which can convert the high-speed low torque of the motor into low-speed high torque output, suitable for small and medium-sized conveying equipment such as belt conveyors, scraper conveyors, and screw conveyors. For example, in scenarios such as short distance transportation of sand and gravel materials in mines, material transfer in grain processing production lines, and powder transportation in building materials factories, conveyor rollers or spiral blades can be driven to meet the requirements of low-speed and uniform speed transportation, and the hard tooth surface design can cope with the impact load during material transportation, avoiding premature wear of transmission components.

2. Small and medium-sized mixing equipment

Suitable for small and medium-sized mixing equipment such as vertical mixers, horizontal mixers, paste mixers, etc., such as sauce mixing in the food industry, coating mixing in the chemical industry, and small mortar mixers in the construction industry. A power of 5.5 kW is sufficient to drive the stirring blades, and a reduction ratio of 180 can provide stable low-speed stirring power, preventing material splashing or uneven mixing caused by too fast speed; The installation method of hollow shaft with locking plate (NA54) can quickly connect with the mixing shaft, and is easy to disassemble and maintain, suitable for frequent start stop conditions of small and medium-sized production lines.

3. Conveyor and positioning mechanism of automated production line

In automated production lines such as electronic component assembly lines, small household appliance assembly lines, and hardware parts sorting lines, it can be used as a power source for conveyor belt drives, chain transmission lines, or as a driving mechanism for production line positioning fixtures. Its horizontal installation structure is compact and can adapt to the narrow installation space of the production line. The low noise characteristics of the hard tooth surface transmission meet the environmental protection requirements of the workshop, and the transmission accuracy is high, which can ensure the uniform operation of the conveyor line or fixture and meet the rhythm control requirements of automated production.

4. Small and medium-sized lifting and hoisting equipment

Suitable for small electric hoists, hoists, lifting platforms and other lifting equipment, such as small cargo lifts in warehouses, mold transfer lifts in workshops, and small material lifts in construction sites. A reduction ratio of 180 can provide sufficient lifting torque, and a power of 5.5 kW can meet the lifting needs of small and medium-sized loads (usually suitable for 1-3 tons of load). The overload capacity of the reducer is strong, and it can cope with the instantaneous impact load during the start-up of lifting equipment, ensuring the safe operation of the equipment.
