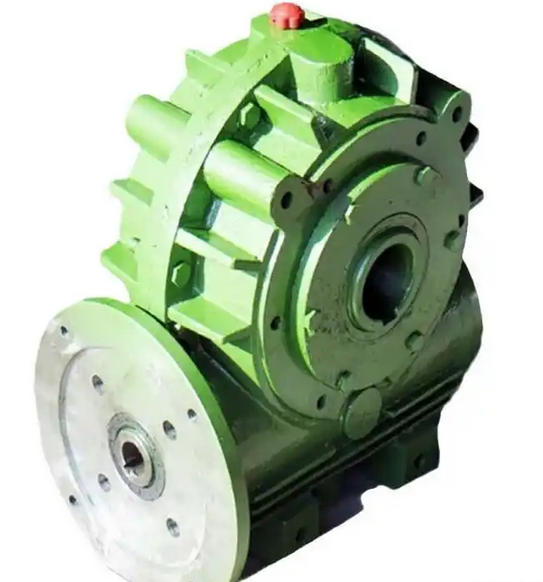

Detailed installation steps for SCWU140-50-1 worm gear reducer

The detailed installation steps for SCWU140-50-1 worm gear reducer are as follows:

1. Preparation before installation:

Equipment inspection: Check whether the packaging of the reducer is intact, whether the appearance is damaged or deformed, and whether the components are complete. Check the nameplate parameters to confirm whether the model, specifications, etc. of the reducer are consistent with the design requirements.

Cleaning work: Clean the installation surface and connecting components of the reducer, remove oil stains, rust, debris, etc., and ensure that the installation surface is flat and smooth.

Preparation of tools and materials: Prepare the necessary tools for installation, such as wrenches, screwdrivers, level gauges, dial gauges, etc., as well as suitable sealant, lubricating oil, and other materials.

2. Determine the installation location: Choose a dry, clean, and well ventilated place to install the reducer, while considering the convenience and safety factors of maintenance, and leaving sufficient space around.

3. Fixed foundation: Install the reducer on a solid foundation and secure it with anchor bolts. During installation, a level should be used to check the levelness of the reducer, with a horizontal error generally not exceeding 0.1mm/m.

4. Connecting the motor: Connect the motor to the reducer, usually using a coupling. When installing the coupling, ensure the coaxiality between the motor shaft and the input shaft of the reducer. Generally, the radial error should not exceed 0.05mm and the axial error should not exceed 0.1mm. A dial gauge can be used for measurement and adjustment.

5. Pipeline connection (if any): If the reducer needs to be connected to pipelines such as inlet and outlet pipes, it is necessary to ensure that the pipeline connection is firm and well sealed to prevent oil leakage. At the same time, attention should be paid to the layout of pipelines to avoid additional stress on the gearbox caused by pipelines.

6. Install the flange: Align the flange of the worm gear reducer with the flange of the equipment to be connected, ensure that the connection holes are accurately aligned, and firmly fix them with bolts. When tightening bolts, they should be gradually tightened in a symmetrical order to ensure a tight flange connection.

7. Adjust position: Fine tune the position of the reducer to ensure that it can cooperate and coordinate with other equipment, ensuring that the output shaft of the reducer is on the same axis as the input shaft of the working machine.

8. Add lubricating oil: Check if the lubricating oil inside the reducer is sufficient, and add an appropriate amount of lubricating oil according to usage needs. The specifications and models of the lubricating oil should meet the requirements of the reducer.

9. Manual turning: After installation, rotate the input shaft of the reducer by hand to check whether it rotates flexibly and has no jamming phenomenon.

10. Test run: Connect the power supply for test run, first perform no-load operation, observe whether the reducer can operate normally, and whether there are any abnormal noise, vibration, and high temperature conditions. If the no-load operation is normal, gradually load it to the rated load and continue to observe the operation.
