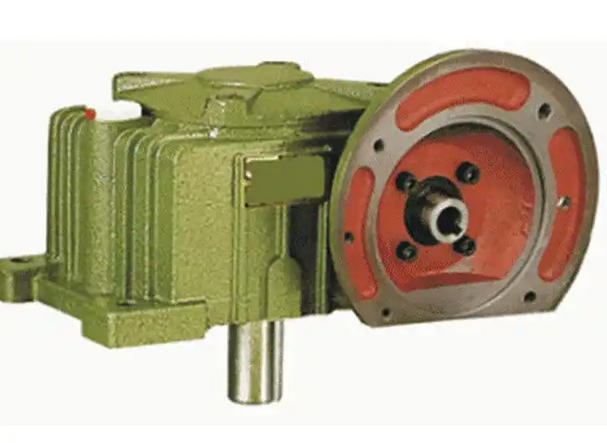

Technical parameters and working principle of WPDX80-50-1.5KW worm gear reducer

WPDX80-50-1.5KW worm gear reducer is a common reduction equipment, and its detailed introduction is as follows:

Technical Specifications:

Input power: 1.5KW

Reduction ratio: Common reduction ratios include 1:10, 1:15, 1:20, 1:25, 1:30, 1:40, 1:50, 1:60, etc.

Dimensions: A size is 225mm, AB size is 125mm, BB size is 142mm, BC size is 70mm, CC size is 80mm, M size is 175mm, N size is 320mm, E size is 140mm, E1 size is 130mm, E2 size is 150mm, G size is 20mm, Z size is 15mm.

Motor flange: LA size is 115mm, LB size is 95mm, LC size is 140mm, LE size is 4mm, LZ size is M8.

Output shaft: Q size is 31mm, U size is 11mm, T × V size is 4 × 12.8mm.

Working principle: This reducer is mainly composed of components such as worm gear, worm gear, bearings, oil seals, etc. Worm gears are usually made of high-strength alloy steel and serve as active components, connected to the output shaft of the motor. Worm gears are made of cast iron or copper with lower hardness and are driven components. When the motor drives the worm gear to rotate at high speed, the spiral teeth on the worm gear mesh with the teeth on the worm wheel, transmitting power through rotation, thereby converting the high-speed rotation of the input shaft into low-speed rotation of the output shaft, achieving the effect of reducing speed and increasing torque.
