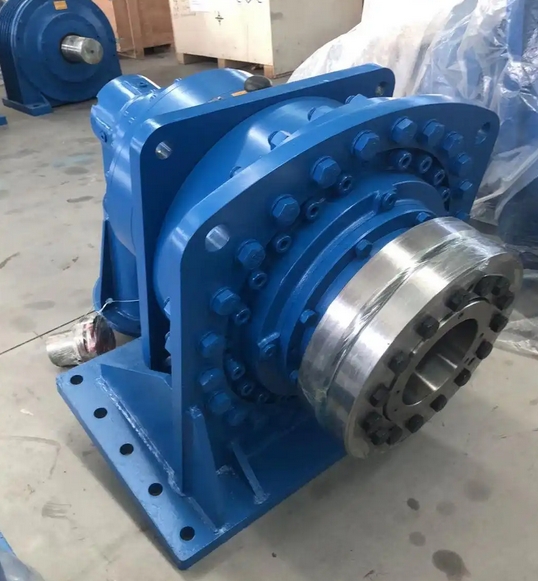

What type of lubricating oil should be used for the P3KA17 planetary gearbox?

P3KA17 planetary gearbox can usually use medium load industrial gear oil, and the specific model needs to be determined according to the ambient temperature and output shaft speed
：

When the ambient temperature is between -10 ℃ and 15 ℃, and the output shaft speed is higher than 100 revolutions per minute, 68 gear oil can be selected; If the output shaft speed is lower than 100 revolutions per minute, 100 gear oil should be selected.

When the ambient temperature is between 0 ℃ and 30 ℃ and the output shaft speed is higher than 100 revolutions per minute, it is recommended to use No. 150 gear oil; When the output shaft speed is below 100 revolutions per minute, 220 gear oil should be selected.

If the gearbox operates under special conditions such as high temperature, high load, or frequent start-up, it is also necessary to consider using gear oils with better performance, such as heavy-duty industrial gear oils or synthetic gear oils. You can also consult the gearbox manufacturer or lubricant supplier for more accurate advice.
