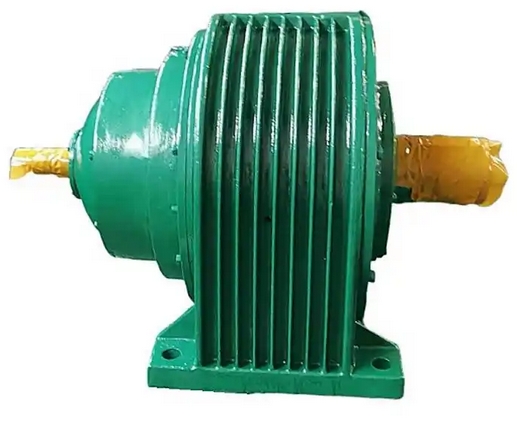

How to prevent low-temperature damage to NAF224-4-2 planetary gear reducer

The comprehensive measures to prevent low-temperature damage of NAF224-4-2 planetary gear reducer are as follows:
1、 Material and structural optimization

Selection of low-temperature toughness materials

The core components such as gears and bearings are made of low-temperature alloy steel (such as 20CrNiMoA carburizing steel or 304L stainless steel) to ensure high toughness and impact resistance below -40 ℃.

Non metallic parts (such as sealing gaskets and bearing retainers) should be made of low-temperature resistant materials (such as PTFE or silicone rubber) to avoid low-temperature hardening or cracking.

Structural reinforcement treatment

Gears need to undergo carburizing quenching and low-temperature tempering (tempering temperature ≤ 200 ℃) to eliminate internal stress and improve low-temperature toughness.

The box design needs to reserve thermal expansion gaps to prevent sealing failure or structural deformation caused by low-temperature shrinkage.

2、 Lubrication system management

Low temperature lubricating oil adaptation

Using synthetic gear oil (such as PAO or ester base oil), the pour point should be at least 20 ℃ lower than the working environment temperature (for example, ISO VG 22 oil with a pour point ≤ -50 ℃ should be selected for -30 ℃ environment).

Add low-temperature anti-wear agents (such as sulfur phosphorus type additives) to prevent gear wear caused by oil film rupture.

Lubrication Maintenance Specification

Preheat the lubricating oil to above 30 ℃ before the first start-up (using an electric heating rod or external heat source) to avoid insufficient lubrication during cold start-up.

Regularly check the condition of the oil (every 500 hours), and replace it immediately if turbidity or abnormal viscosity is found.

3、 Operation and maintenance strategy

1. Low temperature start-up protection

Install an oil temperature sensor that automatically triggers a preheating program when the ambient temperature drops below -10 ℃ to ensure the fluidity of the lubricating oil.

After starting, run at low speed without load for 5-10 minutes, and gradually load when the oil temperature rises to the working range (above 10 ℃).

2. Sealing and protection upgrade

Adopting a dual lip oil seal (such as fluororubber material) and a labyrinth sealing structure to prevent cold air from entering and causing internal icing.

Regularly inspect the seals (once a week) and replace them promptly if aging or leakage is found.

3. Environmental adaptability adjustment

In extremely cold regions (such as below -40 ℃), it is recommended to install insulation layers (such as aluminum silicate fiber felt) or constant temperature heating devices.

Avoid frequent starting and stopping to reduce the impact of thermal expansion and contraction on gear mesh clearance.

4、 Regular inspection and maintenance

Check the gear meshing status (tooth surface wear, pitting) and bearing clearance (≤ 0.05mm) every 2000 hours.

Replace the lubricating oil and clean the oil circuit every 5000 hours to prevent impurities from depositing at low temperatures.

Through the above measures, the failure risk of NAF224-4-2 planetary gearbox in low-temperature environments can be significantly reduced, and the service life can be extended.
