Which type of gearbox is more suitable for use in high-speed equipment

For high-speed equipment, planetary reducers are a better choice, followed by hard toothed helical gear reducers. These two types of reducers perform outstandingly in terms of transmission efficiency, operational stability, noise control, and structural compactness, and can better meet the comprehensive performance requirements under high-speed working conditions.

1. Planetary gearbox: preferred for high-speed and high-precision scenarios

Planetary reducers have significant advantages in high-speed operation due to their unique planetary gear system structure:

High transmission efficiency: usually up to 95% or more, multiple teeth meshing simultaneously to achieve power distribution, low energy loss, low heat generation, suitable for long-term high-speed operation.

High precision and low backlash: The manufacturing process is precise, and the backlash can be controlled within 1arcmin to ensure stable transmission ratio at high speeds. It is suitable for automation equipment that requires high positioning accuracy.

Smooth operation and low noise: uniform force distribution, minimal vibration, and can maintain good dynamic performance even at high input speeds of 3000-6000 r/min.

Compact structure: With the same load-bearing capacity, it has a smaller volume and is suitable for the layout of high-speed equipment with limited space.

Typical applications include high-end automation equipment such as industrial robots, CNC machine tools, and high-speed conveyor lines.

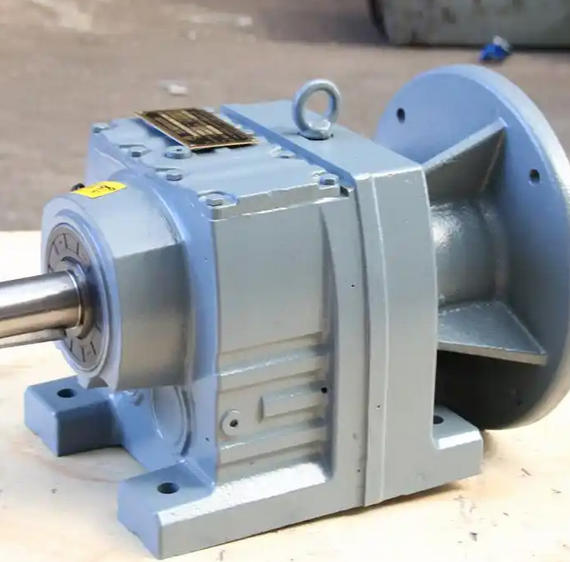

2. Hard tooth helical gear reducer: Optimal selection for medium and high-speed heavy-duty scenarios

If the equipment is cost sensitive and has a large load, a hard toothed helical gear reducer is also a suitable choice:

High load capacity and wear resistance: The gear has undergone carburizing and quenching treatment, resulting in high tooth surface hardness (≥ HRC60). Combined with CNC gear grinding technology, it has good contact and long service life.

Suitable for high-speed input: The design allows input speeds up to 1500 r/min, and some optimized models can reach even higher speeds, making it suitable for continuous operation equipment such as plastic machinery, fans, and water pumps.

Heat dissipation and structural optimization: Aluminum alloy casing or added heat dissipation ribs can be used to enhance the heat dissipation capacity during high-speed operation and reduce the risk of temperature rise.
