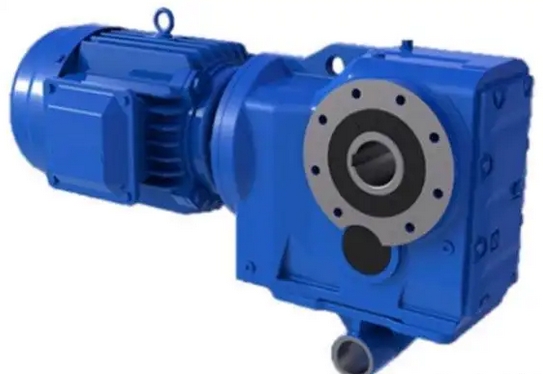

KAT127-54.07-22KW gear reducer model meaning and characteristics

The meaning and characteristics of the KAT127-54.07-22KW reducer model are as follows:

Model meaning:

KAT: Indicates that the type of reducer is a helical bevel gear reducer. Among them, K represents a bevel gear reducer, A may represent a specific design or structural feature, and T usually indicates that the reducer has a three-stage transmission structure.

127: Represents the base number, used to determine the installation dimensions and some basic structural parameters of the gearbox. Different base numbers correspond to different external dimensions, shaft diameters, center heights, etc.

54.07: It is the reduction ratio, which is the ratio of the input shaft speed to the output shaft speed, indicating that the reducer can reduce the input speed to 1/54.07 of the original.

22KW: Refers to the motor power that the reducer is compatible with, which is 22 kilowatts, reflecting the power that the reducer can withstand and transmit.

characteristic:

Transmission method: Adopting bevel gear transmission, vertical output power. This transmission method can achieve a larger transmission ratio and to some extent change the direction of power transmission, making the layout of the equipment more flexible.

Compact structure: With a small volume and weight, it can be installed and used in limited space, suitable for occasions with high installation space requirements.

Low noise: Through high-precision gear machining and reasonable structural design, the smoothness of gear meshing is ensured, effectively reducing the noise during operation.

There are various installation forms: base type, flange type, small flange type, torsion arm type, etc. The output methods include solid shaft and hollow shaft output, and the input methods include direct motor, shaft input, and connecting flange input, which can meet the installation and connection needs of different equipment.
