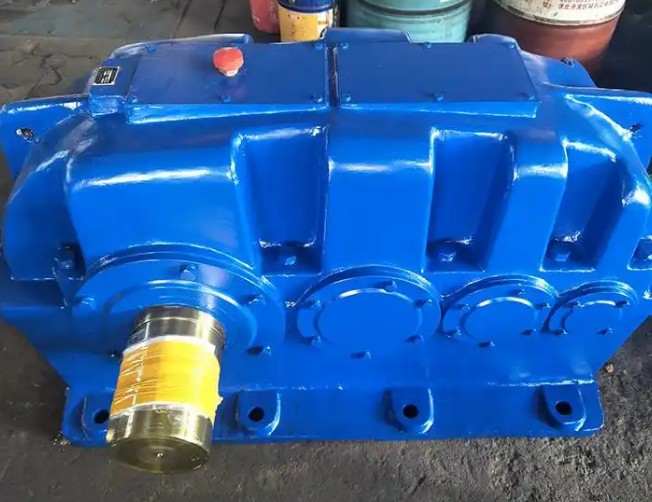

What are the consequences of abnormal connection between the motor and ZSY400-63-l gear reducer?

Abnormal connection between the motor and ZSY400-63-L gear reducer can cause a series of chain technical and safety issues. The most direct consequence is a decrease in transmission efficiency, accelerated damage to core components, and a significant increase in equipment shutdown and safety accident risks. Based on engineering practice and equipment operation rules, the specific consequences are as follows:

1、 Accelerated damage to core transmission components

1. Coupling system failure
Inconsistent connections or loose bolts can cause rapid aging and cracking of the elastic body of the coupling, and shear fracture of the column pin or bolt under alternating loads; In severe cases, the coupling body may deform and crack, completely losing its transmission function.

2. Shaft system and bearing damage
Radial or angular deviations can apply additional bending moments to the motor output shaft and gearbox input shaft, causing bending deformation at the shaft ends; At the same time, the bearing is subjected to non-uniform loads, resulting in fatigue spalling of the raceway, damage to the cage, a sharp increase in temperature, and a reduction in service life by more than 50%.

3. The internal gears of the reducer are damaged
Input shaft bias load will be transmitted to high-speed gears, causing uneven force on the meshing surface, leading to tooth surface pitting, bonding, and even tooth breakage, ultimately resulting in the scrapping of the reducer.

2、 Deterioration of equipment transmission performance

1. The transmission efficiency has significantly decreased
Excessive or non concentric connection gaps can increase friction and impact losses, causing the overall transmission efficiency of the gearbox to drop from the rated 96% to 98% to below 85%. This is manifested as an abnormal increase in motor current, increased energy consumption, and decreased load capacity.

2. Unstable speed and torque output
Elastic failure or keyway wear may cause a "slip" phenomenon, with output speed fluctuating rapidly and torque fluctuations exceeding 15%, which cannot meet the precision requirements of the process.

3. Increased vibration and noise
Abnormal connection can easily cause resonance, and the vibration speed of the coupling part far exceeds the ISO 10816 standard limit of 2.8mm/s. The operating noise can reach over 95dB, affecting equipment stability and polluting the working environment.

3、 Upgrading safety risks and production losses

1. Sudden shutdown and production capacity loss
Malfunctions such as coupling breakage and shaft damage can cause sudden equipment shutdown, with repair cycles typically taking several days to weeks, resulting in production line interruptions; Frequent start stop may also impact the power grid and affect other equipment.

2. Potential safety hazards
Severe vibration may cause the coupling protective cover to fall off, and high-speed rotating components to be thrown out and injure people; Loose or broken anchor bolts may cause equipment overturning and result in major safety accidents.

3. Rapid increase in maintenance costs
Abnormal connections often lead to chain damage, requiring frequent replacement of spare parts such as elastomers, bearings, and gears. The frequency of manual maintenance increases, resulting in a 30% to 50% increase in operating costs throughout the entire lifecycle.
