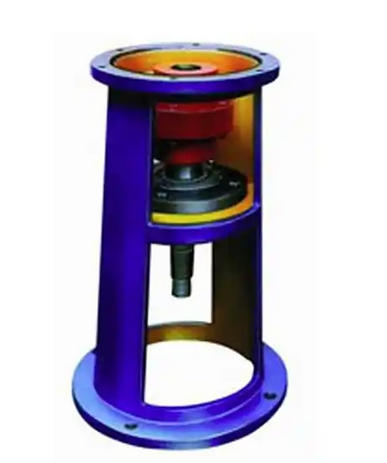

Detailed introduction to the structural features and installation methods of the JBT6-B4 reducer frame.

JBT type reducer frame is a common component used to support and connect reducers. The following is a detailed introduction about it:

Model and specification: There are various models of JBT reducer frames, such as JBT2-B1 (X3)、JBT2-B2 (X4)、JBT3-B2 (X4)、JBT3-B3 (X5)、JBT4-B3、JBT5-B3-(X5)、JBT5-B4、JBT6-B4、JBT6-B5 (X8)、JBT7-B5 (X8)、JBT8-B6 (X9)、JBT9-B7 (X10)  Wait.

Structural characteristics: The JBT type reducer frame is usually made of materials such as cast iron or steel, which have high strength and rigidity and can effectively withstand various loads generated by the reducer during operation. Its structural design is reasonable, easy to install and maintain, and can be customized according to different reducer models and usage requirements.

Installation method: The installation method of JBT type reducer frame is diverse, and some models adopt the installation method of directly hanging on the supporting host power input shaft, omitting the connecting accessories and reducer installation platform between the two, suitable for parallel shafts with winding axis arrangement.

Selection principle: The selection principle of JBT type reducer frame is determined based on the size of the reducer output shaft diameter. As long as the interface form and installation size are consistent, the output shaft size of the reducer can fluctuate up and down within a certain range of the frame model.

Application areas: JBT type reducer frames are widely used in mixing equipment in industries such as chemical, food, pharmaceutical, and environmental protection. They can also be used as driving devices for conveyor equipment such as belt conveyors, bucket elevators, and scraper conveyors, as well as transmission devices for other types of mechanical equipment.
