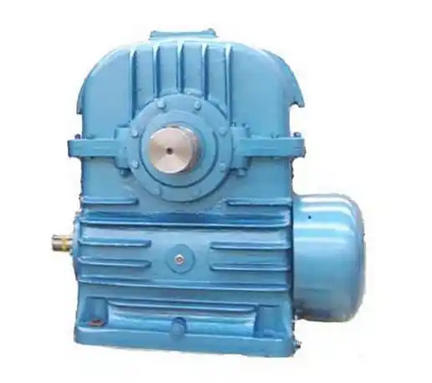

Applicable scenarios of TPU125-60-II worm gear reducer

The TPU125-60-II worm gear reducer is suitable for scenarios with medium to low speeds, small to medium loads, and requirements for transmission smoothness and self-locking, especially for equipment that needs to reduce the speed of high-speed motors to low-speed output.

Based on its model parameters (center distance of 125mm, transmission ratio of 60, specific installation form), its applicable scenarios can be divided into four categories, with the core matching the characteristics of "medium low load+smooth transmission+self-locking demand" working conditions.
1. Lightweight conveying and sorting equipment
This type of equipment requires stable low-speed transmission and low load, with high compatibility with the performance of the reducer.

Specific equipment: small belt conveyor, drum sorting machine, assembly line auxiliary conveyor mechanism.

Adaptation reason: A transmission ratio of 60 can reduce the motor speed (usually 1450rpm) to about 24rpm, meeting the low-speed operation requirements of the conveying equipment; The smoothness of worm gear transmission can avoid shaking during material conveying, and the specification with a center distance of 125mm can provide sufficient torque (usually rated torque 500-1500N · m) to cope with the conveying load of lightweight materials such as cardboard boxes and small components.

2. Small and medium-sized lifting and hoisting equipment
By utilizing the self-locking characteristics of worm gears, the safe operation of lifting equipment can be ensured, avoiding load reversal.

Specific equipment: small lifting platform, electric gate opening and closing machine, lifting mechanism for storage small stacker crane.

Adaptation reason: When the worm lead angle is less than the friction angle, the reducer has reverse self-locking ability, which can prevent the lifting platform or gate from accidentally sliding down when the power is off; A transmission ratio of 60 can provide sufficient output torque to drive small and medium weight loads (such as hundreds of kilograms of goods or gates) to rise and fall smoothly, with low operating noise, suitable for scenarios that require safety and quietness.
