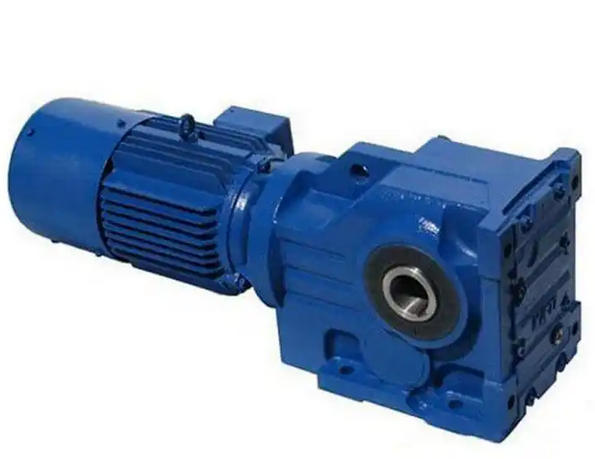

Lubrication System Structure of KAB107-90.96-YEJ11KW Gear Reducer

The lubrication system structure of KAB107-90.96-YEJ11KW gear reducer mainly includes the following key parts:

1. Oil pump: responsible for extracting lubricating oil from the oil tank and delivering it to the components that require lubrication, such as gears and bearings.

2. Oil cooler: used to reduce the temperature of lubricating oil and prevent the lubrication effect from being affected by high oil temperature.

3. Dual filters: used to filter impurities in lubricating oil, maintain the cleanliness of the oil, and prevent impurities from causing wear on gears and bearings.

4. Pressure gauge and pressure switch: used to monitor the pressure of the lubrication system and ensure that the system operates within the normal pressure range.

5. Oil level check plug: usually a special bolt for M16~M24, located 5-10mm below the horizontal line of the gear center, used to check whether the oil level is qualified.

6. Breathable cap: used to balance the atmospheric pressure inside and outside the reducer, preventing lubricating oil leakage due to pressure difference.

These components work together to ensure that the gear reducer receives sufficient and effective lubrication during operation, thereby extending the service life of the equipment and improving operational efficiency.
