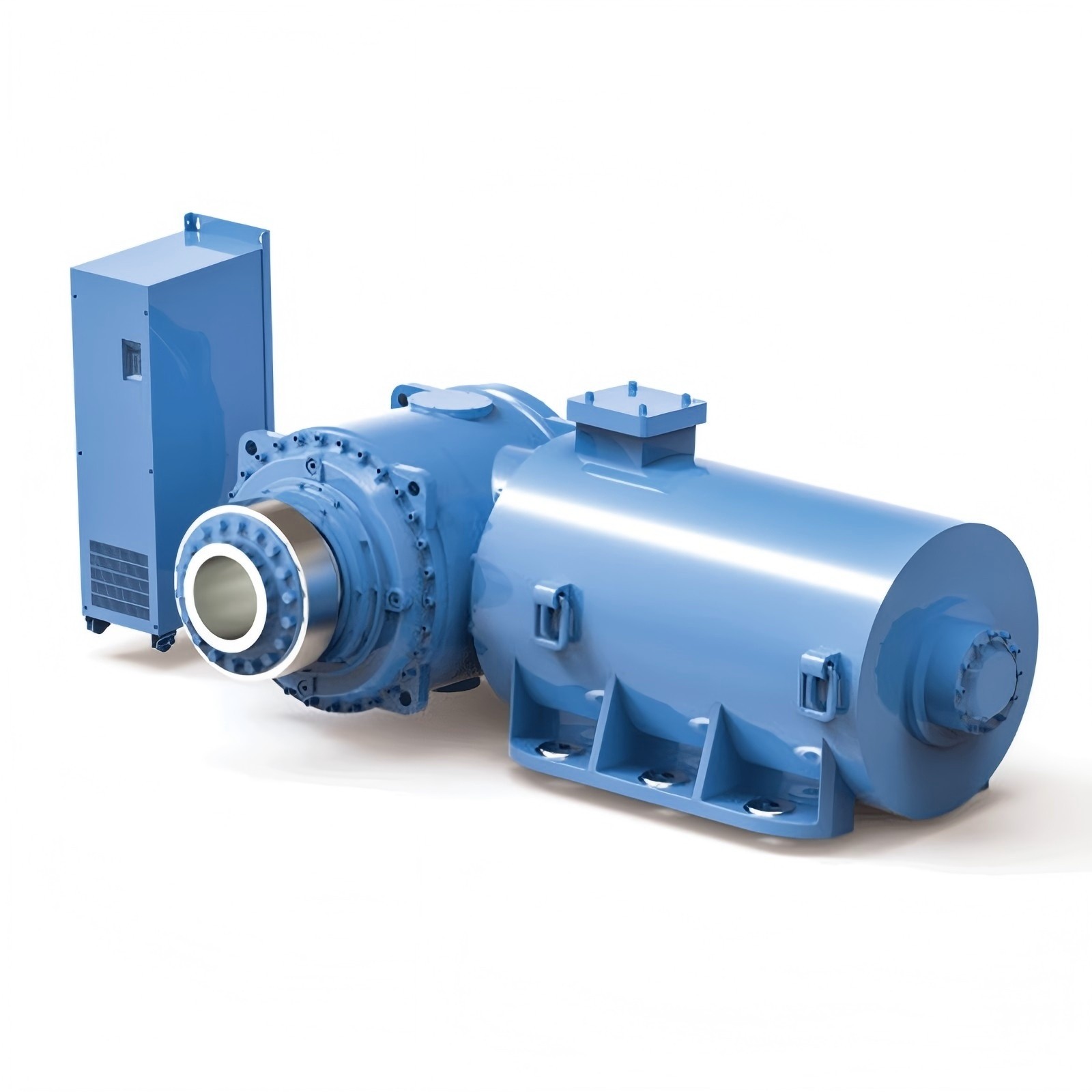

MGDS Series Permanent Magnet-Gear Transmission Sys

NGC's newly developed permanent magnet-gear drive system (MGDS series) integrates a permanent magnet motor, gear transmission, and variable frequency control system, fully leveraging the high efficiency of permanent magnet motors, the high torque density of gear transmission, and the intelligent control of the frequency conversion system.

Features:

Based on standard platforms, while combining modular with special designs for greater economy and applicability;

Mature electromagnetic structure design ensures good system reliability;

Features unique gear modification technology and special pole slot matching design to reduce cogging torque fluctuation;

Vector control technology for outstanding overload starting performance;

Optimizes natural system frequency to improve NVH performance.

Main Technical Parameters:

Voltage level: 380 V

Installed power: 45-280 kW

Output torque: 35-310 kN.m

Output speed: 15-30 rpm

Main Fields of Application:

Drives for large mainframe equipment in various industrial fields such as building materials, metallurgy, coal, mining, electric power, and the chemical industry, for equipment such as mills, elevators and belt conveyors.
