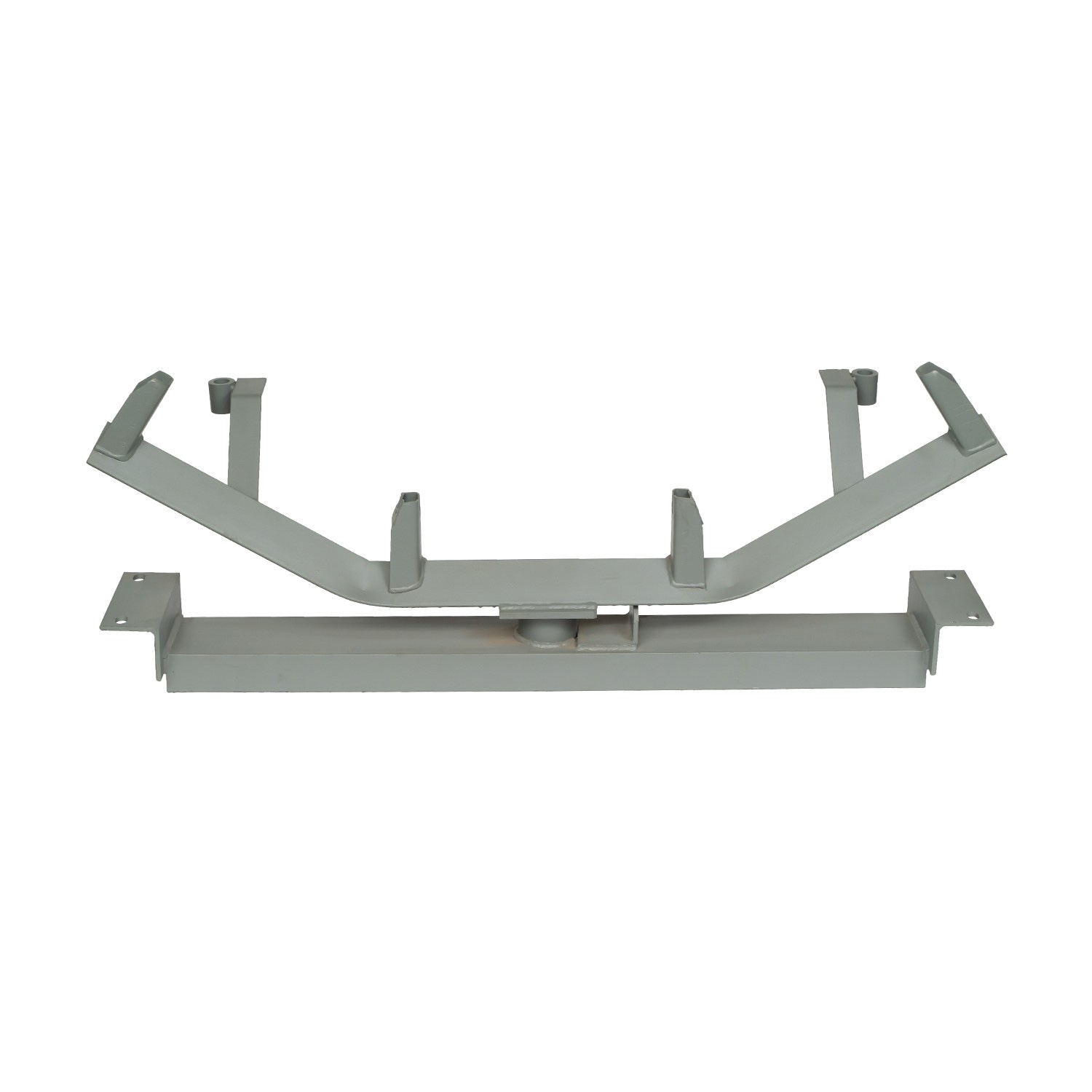

Type 75 Troughing Self-Aligning Idler Frame

Type 75 Troughing Self-Aligning Idler Frame

The Type 75 Troughing Self-Aligning Idler Frame is designed to automatically correct conveyor belt misalignment and keep the belt running centrally. It is widely used in bulk material handling industries such as mining, quarrying, cement, steel, and power plants.

Made of high-strength carbon steel with precision welding and anti-corrosion surface treatment, this idler frame ensures excellent stability and long service life. The design conforms to DIN and GOST standards and is compatible with standard carrying idlers.

Features:

• Automatically corrects belt misalignment during operation

• Strong welded steel construction, suitable for heavy-duty applications

• Available trough angles: 20°, 35°, 45°

• Applicable belt width: 500–1200 mm

• Surface treatment: hot-dip galvanized or powder-coated

• Standard: Equivalent to DIN 22107 / GOST 22645

Applications:
Ideal for belt conveyor systems in mining, ports, power plants, cement factories, and bulk material terminals.
