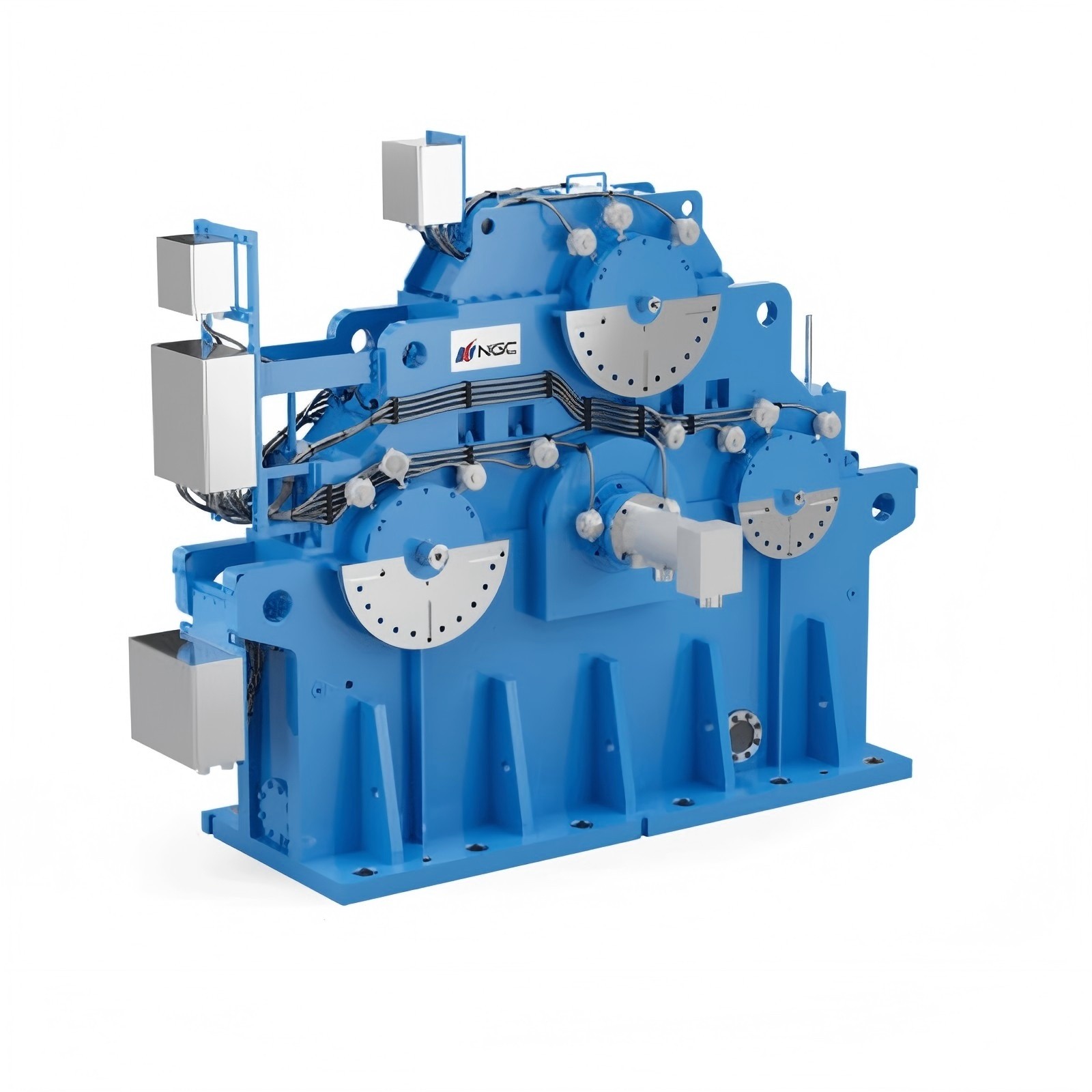

Integrated Multi-shaft Compression High-speed Gear

The TGM series integrated multi-shaft compression gearboxes from NGC are primarily used in air separation units, especially large and extra-large ones. They play a critical role the development of industries such as petrochemicals, coal chemicals, and metallurgy. As a core component of complete air separation equipment, this product is subject to rigorous standards and controls in terms of overall design, raw materials, and processing quality, becoming a nationally leading, globally advanced product in terms of reliability, efficiency, and quality.

Features

Physical Structure: Electrically- and pneumatically-driven multi-shaft gearboxes

Compression Stages: 1-10

Standards: API672, API677, and API613

Discharge Capacity: Up to 100,000 Nm³/h

Technical Specifications

Single-stage Center Distance: < 1800 mm

Single-stage Speed Ratio: < 25

Rotational Speed Range: < 70,000 rpm

Rated Power: < 30,000 kW

Applications

Petrochemical, coal chemical, and metallurgical industries
