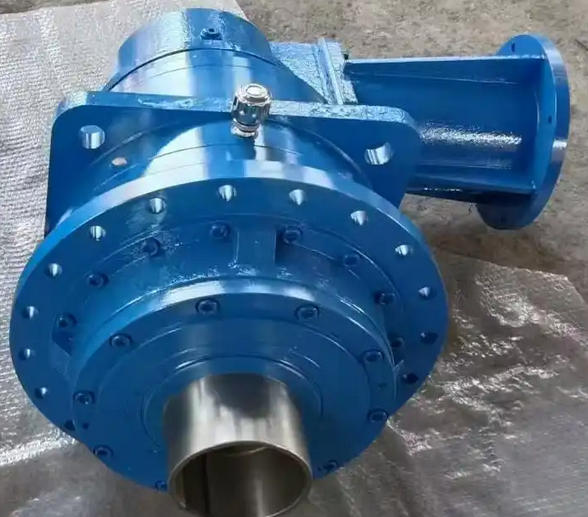

What impact does the installation of P3SA14 planetary gearbox have on vibration
The installation accuracy of P3SA14 planetary gearbox directly determines its operating vibration level. Poor installation can cause different types of vibration abnormalities, leading to component wear, abnormal noise, and even early failure. The following are specific impact and control points:
1、 The influence of shaft alignment deviation on vibration
Axis alignment is the core factor affecting vibration. When the radial offset exceeds 0.03mm, the reducer will experience continuous low-frequency "buzzing" vibration during operation, and the vibration amplitude will increase with the increase of input speed. This is because radial deviation will apply additional bending moments to the internal planetary and sun gears, causing gear meshing bias load and bearing bearing uneven radial force, leading to bearing raceway wear; If the angular deviation is greater than 0.05mm/m, periodic impact noise will occur, and the coupling will also undergo twisting deformation. This is because the misalignment of the angle causes the input shaft to bear additional axial force and bending moment, and the elastic coupling components are prone to fatigue cracking, further amplifying the vibration and transmitting it to the entire machine. In an ideal state, the radial centering deviation should be controlled within ≤ 0.02mm, and the angular deviation should be ≤ 0.05mm/m to avoid gear misalignment and abnormal shaft bearing force.
2、 The impact of installing foundations and fasteners on vibration
If the flatness of the installation foundation exceeds 0.03mm/m or the horizontal deviation is greater than 0.1mm/m, it will cause uneven stress on the gearbox housing, resulting in resonance of the entire machine during operation, greatly amplifying the amplitude, and long-term deformation of the housing; Uneven or loose tightening torque of anchor bolts can cause periodic shaking and high-frequency noise in the gearbox. This is because poor bolt tightening can change the internal gear mesh clearance, causing the planetary gear system to deviate from its operating trajectory. At the same time, the looseness between the shell and the foundation can create a gap impact for vibration transmission. During installation, it is necessary to ensure that the flatness of the foundation is ≤ 0.03mm/m. Equal height washers should be used to level and avoid single point stress. The anchor bolts should be symmetrically crossed and tightened to the specified torque. If necessary, anti loosening washers or thread glue should be added to prevent loosening.
3、 The influence of coupling selection and status on vibration
If a rigid coupling is used without deviation compensation capability, it will not be able to absorb small deviations during installation, resulting in sudden changes in the force on the shaft system, producing high-frequency impact vibration, and in severe cases, damaging the coupling and input shaft; If the elastic element of the coupling ages or is damaged, its deviation compensation ability will significantly decrease, and there will be obvious impact sound and axial movement during the operation of the reducer. The vibration will be directly transmitted to the motor and load end. Therefore, priority should be given to choosing diaphragm or plum blossom elastic couplings, and the condition of the elastic components should be checked regularly to replace aging or damaged parts in a timely manner.
