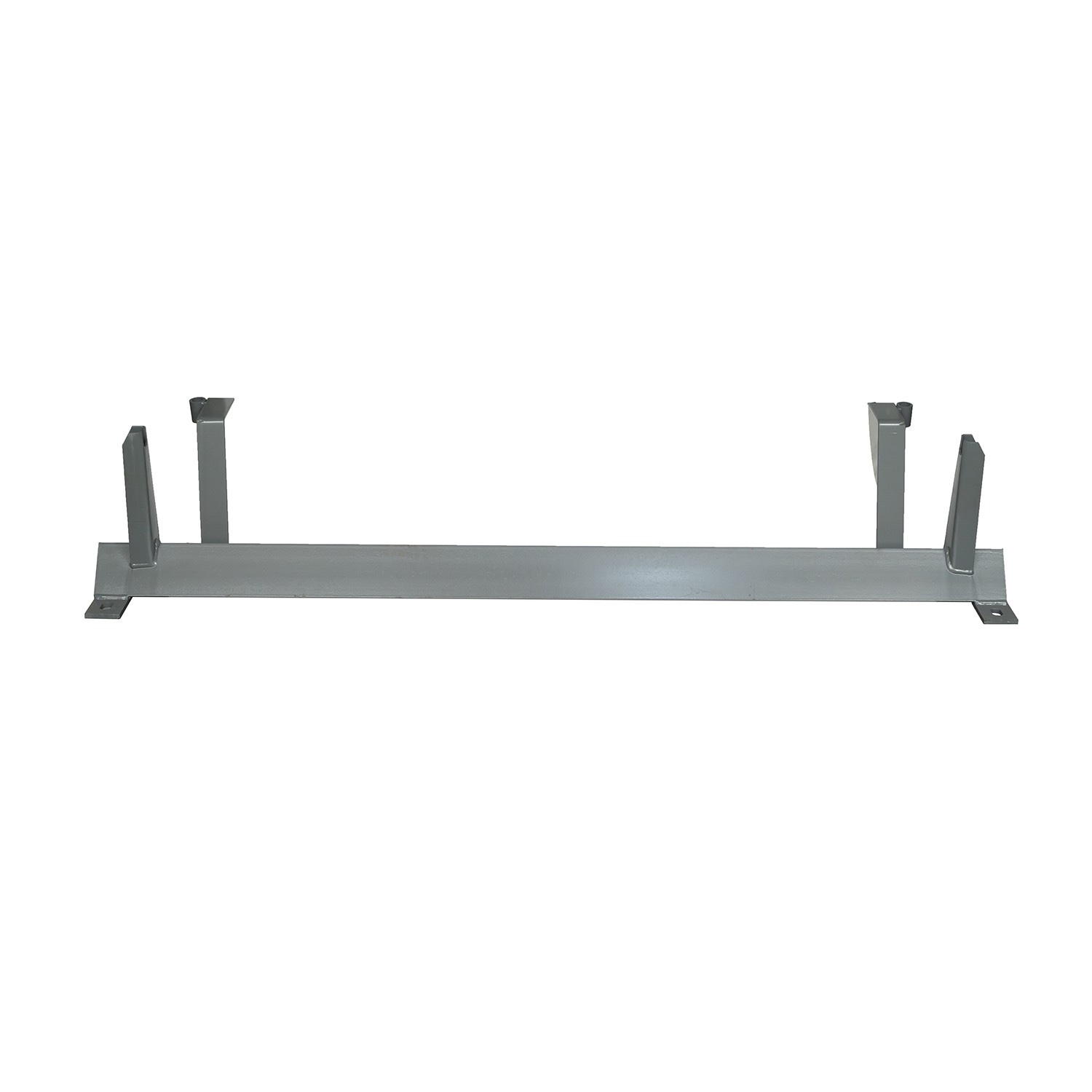

Type 75 Parallel Idler Frame with Guide Rollers

The Type 75 Parallel Idler Frame with Guide Rollers is designed to support the upper belt section and prevent belt deviation during operation. The added guide rollers help keep the belt aligned and stable, especially in long-distance or high-speed conveyor systems.

This frame is made of high-strength carbon steel, precision welded, and treated with hot-dip galvanizing or powder coating for superior corrosion resistance. It is suitable for use in mining, ports, cement plants, and other bulk material handling applications.

Features:

• Equipped with side guide rollers to prevent belt deviation

• Stable structure, ideal for heavy-duty conveyor systems

• Belt width range: 500–1200 mm

• Standard trough angle: 0° (parallel design)

• Surface finish: galvanized or powder-coated

• Complies with DIN and GOST standards

Applications:
Used on the upper belt section of conveyors to maintain belt stability and prevent edge damage.
