Type 75 Troughing Idler Frame

Type 75 Troughing Idler Frame

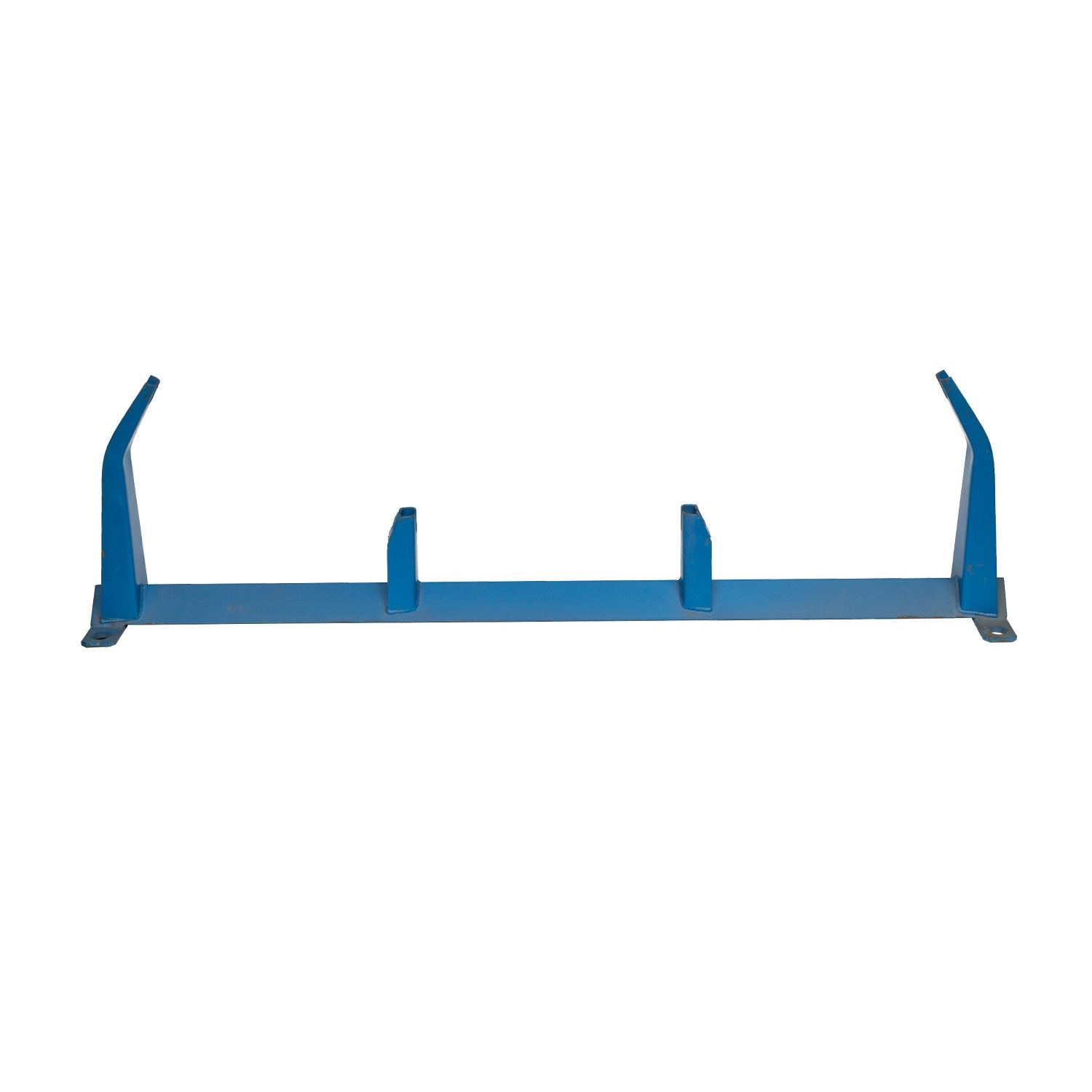

The Type 75 Troughing Idler Frame is designed to support the conveyor belt in a trough shape, ensuring smooth material transport and reducing spillage. It is one of the most common idler frame types used in bulk material handling systems.

Manufactured from high-strength steel and precisely welded, the frame provides excellent rigidity and long service life. It can be supplied with 20°, 35°, or 45° troughing angles according to customer requirements.

Features:

• Supports the belt in a trough configuration for better load stability

• Heavy-duty welded structure for extended service life

• Available trough angles: 20°, 35°, 45°

• Suitable belt width: 500–1200 mm

• Surface treatment: hot-dip galvanized or powder-coated

• Standard: DIN 22107 / CEMA / GOST

Applications:
Ideal for the carrying section of belt conveyors in mining, metallurgy, ports, cement, and power plants.
