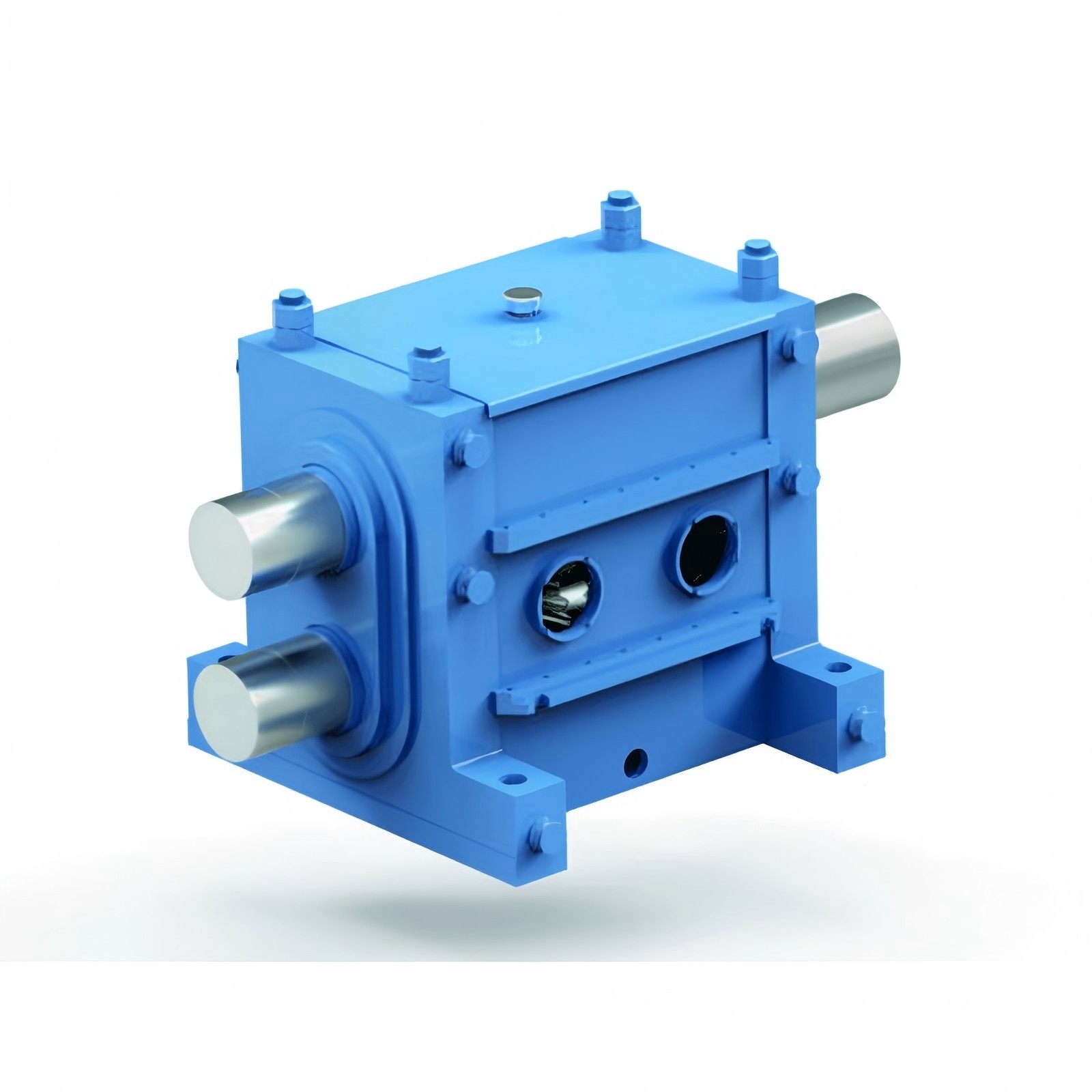

Plate Rolling Mill Gearboxes

This product series is divided into main reducers with reduction ratios and gear stands that distribute power. The main reducer and gear stand are connected in series to transmit the power and torque of the main motor to the two rolls of the hot plate rolling mill by means of reduction and distribution. By optimizing gear modification technology and enhancing casing rigidity, these gearboxes can transmit a large amount of torque. In addition, by using carburized and hardened tooth surface gears, the overall weight is reduced, meeting the reliability and stability requirements of hot plate production lines.

Features:

Modular design, compact structure, short lead time;

Optimized tooth profile and lead modifications ensure more uniform load distribution and higher load-bearing capacity;

The structure of all key parts has been optimized by means of finite element analysis, resulting in a more compact design;

Hard tooth surface design meets the high standards of ISO, AGMA, and DIN.

Main Technical Parameters:

Torque range: up to 4,200 kN.m

Speed ratio range: 1–10

Maximum power rating: 12,000 kW

Main Fields of Application:

Primarily used in hot continuous rolling plate and continuous casting and rolling plate production lines.
