FF47 FAF47 F parallelshaft-helical gear motor

  • F Series parallel shaft spiritual gear motor
  • Factory price:Email contact
  • Payment terms:wire transfer T/T 100%
  • Rroduct packaging:plywood case
  • Offshore port:Shanghai / Ningbo port
  • Quality assurance:1 year
  • Minimum order quantity:10 pieces
  • The fastest delivery time is:7~15 days
  • Country of origin:China
  • Customized logo:50Piece
  • Supply capacity:30 day(1500Piece)
  • Attachment INQUIRY   EMAIL

F series parallel-shaft helical gear units: perfectly matched to limited installation space.A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength.
You can choose from foot-, flange- or shaft-mounted options. For precise positioning tasks, our parallel-shaft helical gear units are available with reduced backlash.
With a high torque rating from 130 Nm to 18,000 Nm, our parallel-shaft helical gear units offer great performance in many conveying and processing applications.

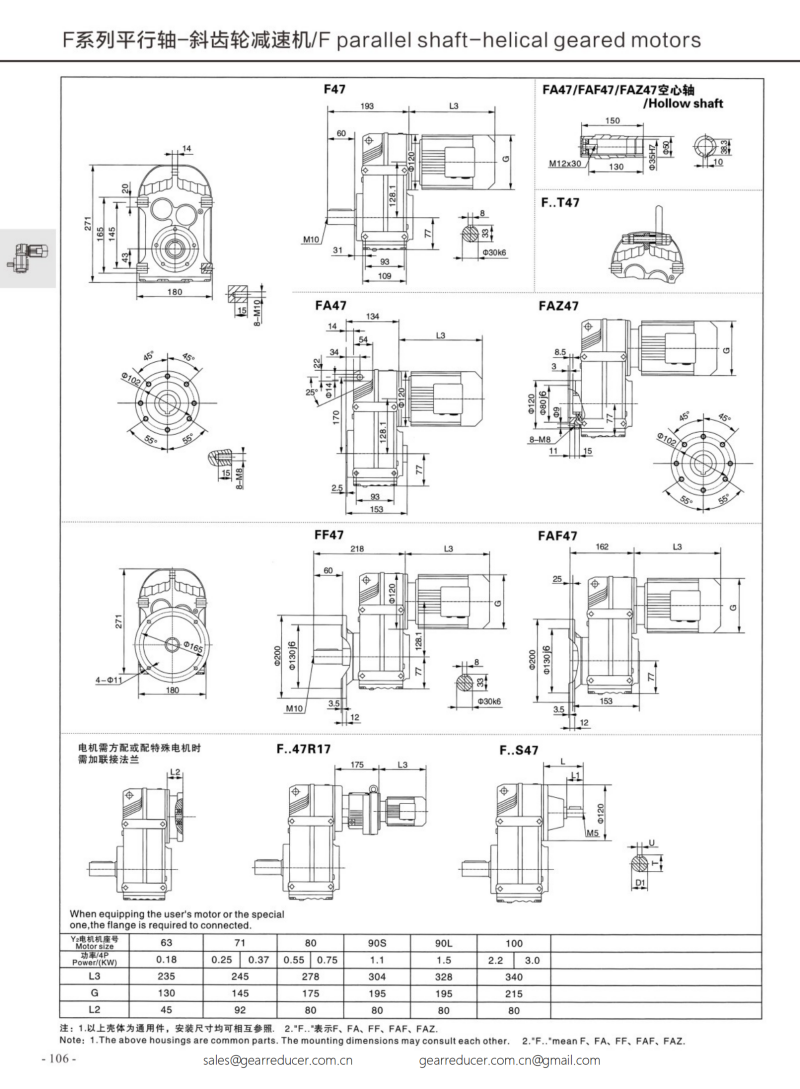

Gear unit size
F37  F47  F57  F67  F77  F87  F97  F107  F127  F157
FA37  FA47  FA57  FA67  FA77  FA87  FA97  FA107  FA127  FA157
FF37  FF47  FF57  FF67  FF77  FF87  FF97  FF107  FF127  FF157
FAF37  FAF47  FAF57  FAF67  FAF77  FAF87  FAF97  FAF107  FAF127  FAF157
FAZ37  FAZ47  FAZ57  FAZ67  FAZ77  FAZ87  FAZ97  FAZ107  FAZ127  FAZ157


F parallelshaft-helical gear motor
The following types of Parallel Shaft-Helical Geared Motors can be supplied:
F..D..  Solid shaft Rail mount with tapped holes
FA..B D..  Hollow shaft with key Rail mount with tapped holes
FV..B D..  Aplined hollow shaft Rail mount with tappped holes
FH..B D..  Shrink disk hollow shaft Rail mount with tapped holes
FF..D..  Solid shaft Flange mount(D & B5 style flange with through holes)
FAF..  D Hollow shaft with key  Flange mount(D & B5 style flange with through holes)
FVE.D..  Hollow shaft with key  Flange mount(D & B5 stvle flange with throuah holes)
FHF..D..  Shrink disk hollow shaft Flange mount(D & B5 style flange with through holes)
FA..D..  Hollow shaft with key Shaft mount
FV..D..  Splined hollow shaft  Shaft mount
FH..D..  Shrink disk hollow shaft  Shaft mount
FAZ..D..  Hollow shaft with key  Face mount(C & B14 sytle flange with tapped holes)
FVZ..D..  Hollow shaft with key  Face mount(C & B14 sytle flange with tapped holes)
FHZ..D..  Shrink disk hollow shaft  Face mount (C & B14 style flange with tapped holes)



+For more information, please go to the download section to download the PDF files of this series for reference

+ALL R/F/K/S 4 series gear reducers Electronic Catalog.pdf

+All MOTOR electronic catalogs (YE3,YE4,YE5,YEJ/YDEJ,YVF,YCT,MS,YD,YBX4-BT4,YBX4-CT4).pdf

+MOTOR_YE3.pdf
