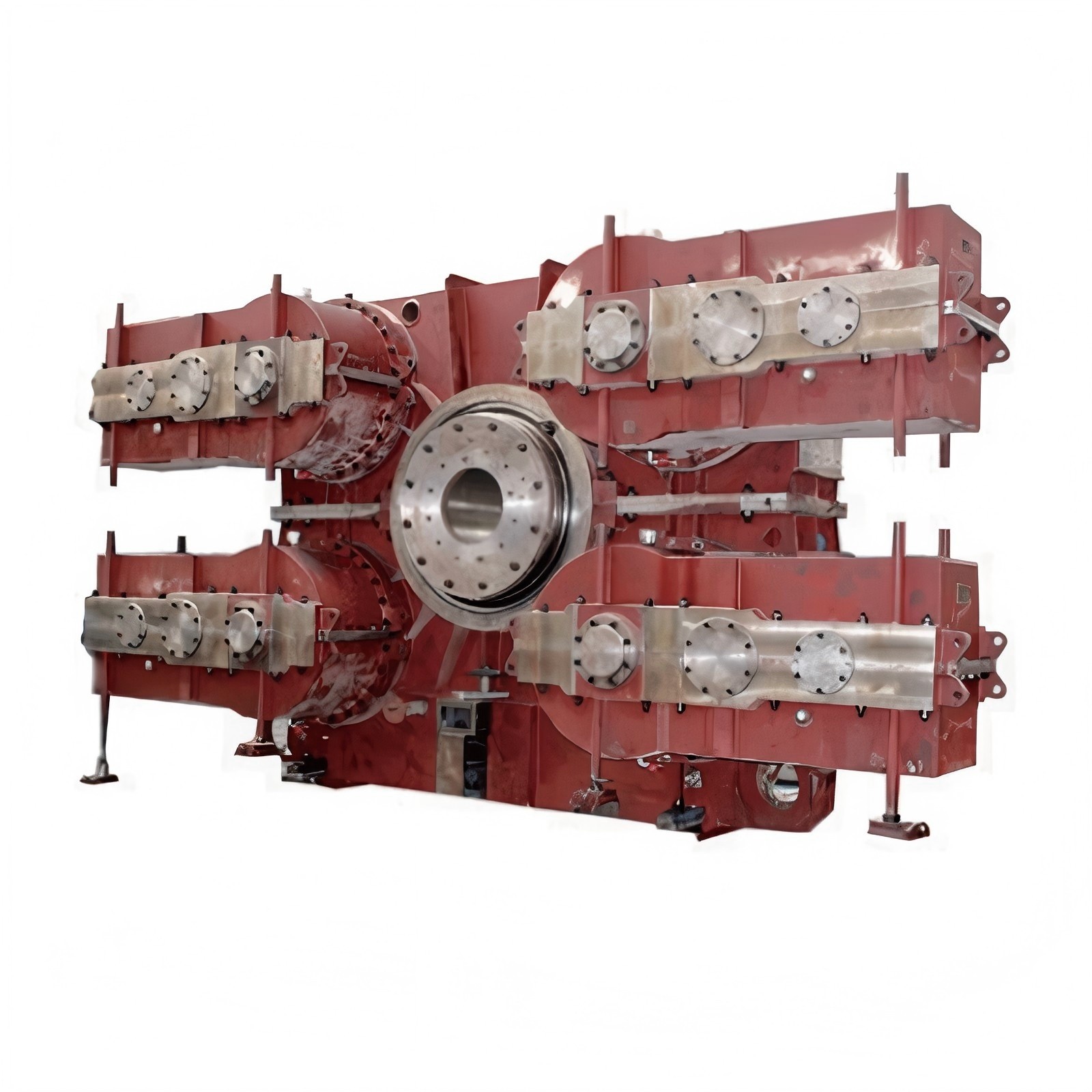

Converter Tilting Device

This product series consists of an AC variable frequency motor, primary reducer, secondary reducer, and a torsion bar balancing device. It features a four-point meshing fully suspended flexible transmission type, with a torsion bar device as torque balancing mechanism. Characterized by its low speed, heavy load and large speed ratio, it can start and brake frequently, bearing larger dynamic loads.

Features:

Reasonably distributed torque range for economy and applicability;

The structure of all key parts has been optimized by means of finite element analysis, resulting in a more compact design;

Fully suspended flexible structure capable of bearing larger dynamic loads;

Hard tooth surface design meets the high standards of ISO, AGMA, and DIN.

Main Technical Parameters:

Specifications: 30 T–300 T

Maximum torque: 6,500 kN.m

Accident torque: 15,000 kN.m

Speed ratio range: 520–1,200

Main Fields of Application:

Used in converter equipment for steel making.
