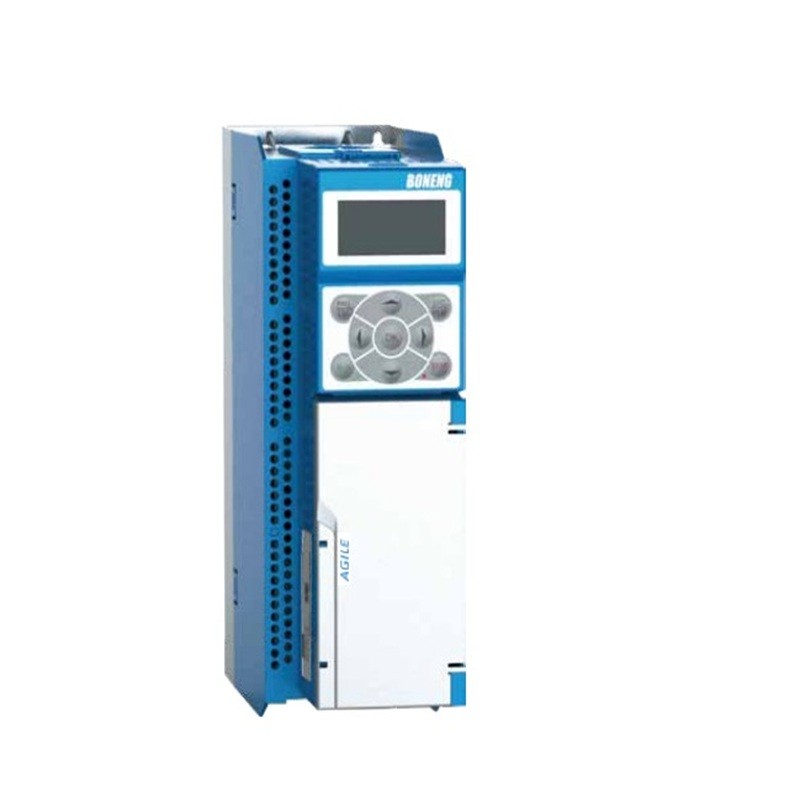

B7(PM25＋CM23＋OP25)

Model specifications

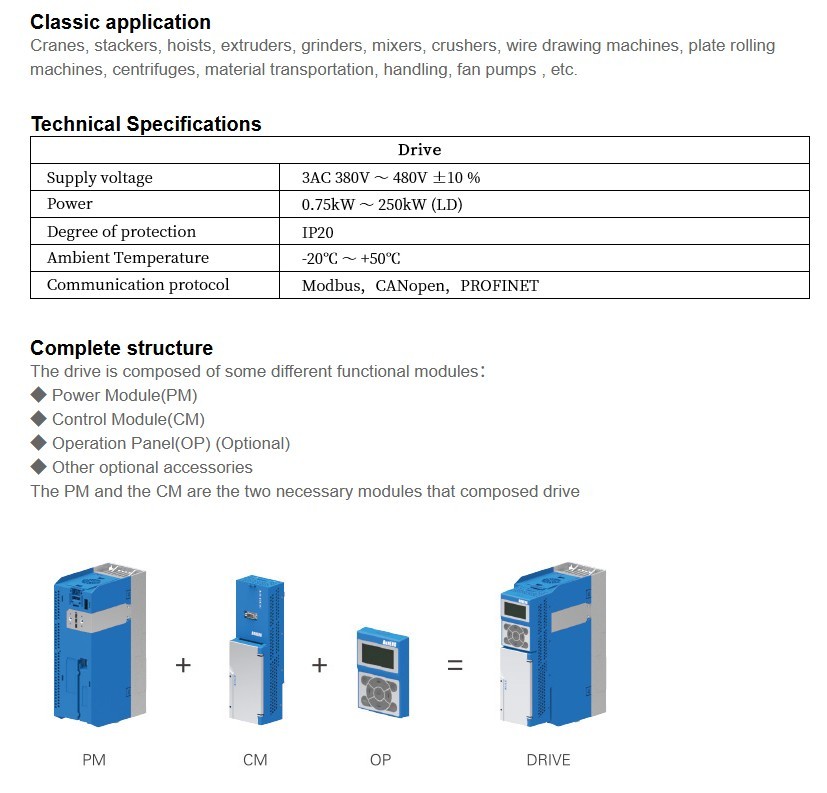

PM25＋CM22＋OP25：B1(0.75 kW～3 kW),B2(4 kW～7.5kW),B3(11 kW～15kW),B4(18.5 kW～37kW),B6(45 kW～132kW),B7(160kW ~ 250kW)

Characteristic

1. Excellent control performance
◆ Support induction motor(IM) and synchronous motor(PM) control
◆ Speed control of SVC (Sensorless vector control) and FVC (Feedback vector control with encoder) : Speed regulation range of SVC is 1:100 and FVC is 1:1000
◆ Support torque control of SVC mode and FVC mode
◆ Speed fluctuation in speed control mode：± 3rpm; torque accuracy in torque mode：± 5%
2. Flexible software functions
◆ Provide free programming module and parameter interconnection, which can be combined and matched freely according to the on-site process
◆ Integrated characteristic functions, such as PID controller, adaptive speed with load, anti sway control, Smooth rotation, etc
◆ Support multiple communication protocols：Modbus, CANopen, PROFINET
◆ Status display via LCD on the Operator Panel in Chinese and English，Support commissioning software based PC——Boneng DriveSoft
3. Strong environmental adaptability
◆ Slim booksize structure to meet side-by-side installation requirements in electrical cabinets
◆Built-in A-class filter(optional), and external filter, meeting the strict electromagnetic level requirements
4. Easy to use and maintainion
◆ Screw free crimping type of IO terminals can be connected and maintained without screw drive
◆ Detachable power terminal, power cable easy to installed conveniently
◆ 105 ° long-life electrolytic capacitor, extending trouble free service life

◆ Advanced semiconductor module and MCU, extremely low failure rate quality assurance
