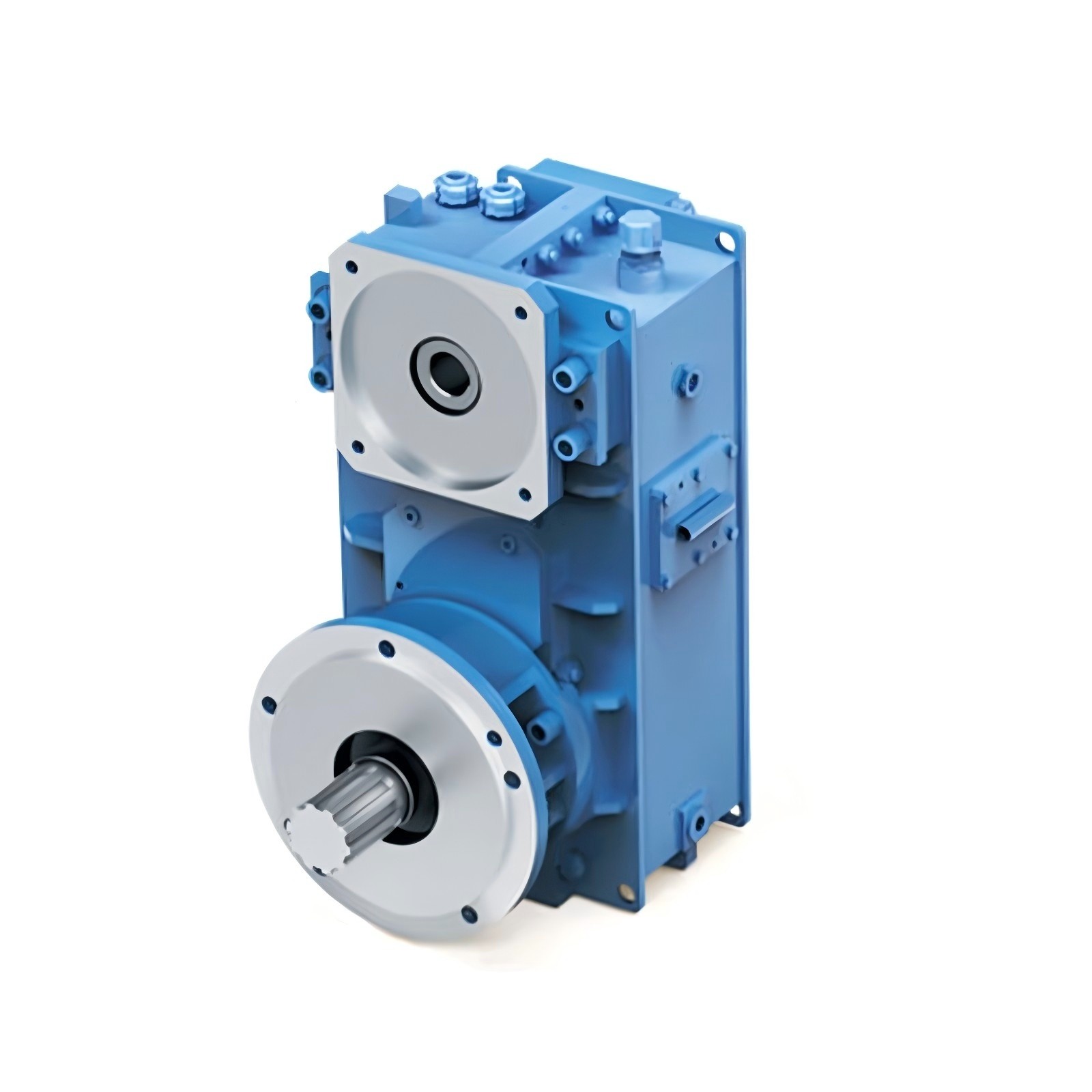

Injection Molding Machine Gearboxes

The injection molding machine gearbox is a specialized drive solution designed for fully-electric injection molding machines, offering high load-bearing capacity, outstanding reliability, lightweight design, and low noise. It features a three-stage parallel-shaft vertical double-flange structure, providing an optimally compact design.

Technical Specifications

Gear Stages: Three-stage parallel-axis gear pairs

Transmission Ratio: 6.3 - 63

Specification: S140 - S450

Power: 20.5 kW – 355 kW

Features

Designed and developed using an industrial standard platform

Modular design for easier control of part quality and shorter delivery times

Combined gear modification design for smoother gearbox operation

Multiple output options: flat key, spline, and hollow shaft. Input and output interfaces can be customized according to actual requirements

Applications

Fully electric injection molding machines
