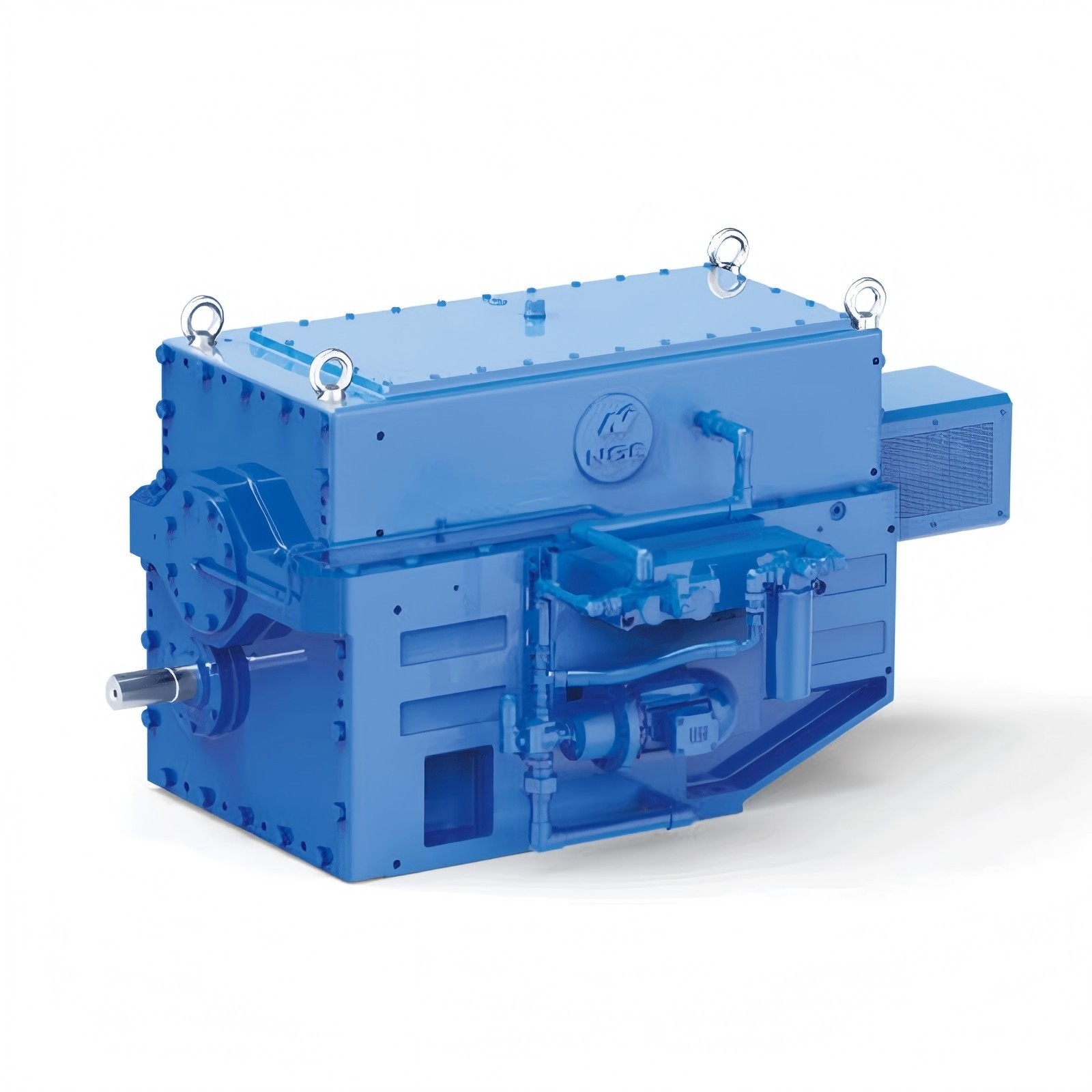

SEPS Series Twin-screw Extruder Gearboxes

Based on NGC's advanced industrial gearbox platform, the SEPS series gearbox is a core component for twin-screw extruders. It features advanced technologies such as large width-to-diameter ratio gear multi-objective modification, dual output shaft phase near-zero difference technology, high-strength transmission shaft material modification and surface strengthening. It also features optimized structural topology and thermal power output, offering high load-bearing capacity, outstanding reliability, low vibration, and low temperature rise. The product is suitable for twin-screw extruders and widely used in the plastics, pharmaceutical, food, and petrochemical industries.

Features

High load-bearing capacity

High transmission accuracy

Small axial deviation

Near zero phase difference

Excellent load sharing and distribution

High transmission efficiency

Low noise and vibration

Technical Specifications

Screw Diameter: 50 - 177 mm

Output Center Distance: 41.5 - 146 mm

Screw Speed: 200 - 1200 rpm

Nominal Speed Ratio: 1.25 - 5.6

Specific Torque: 12.5 - 15 Nm/cm³

Screw Back Pressure: 200 bar
