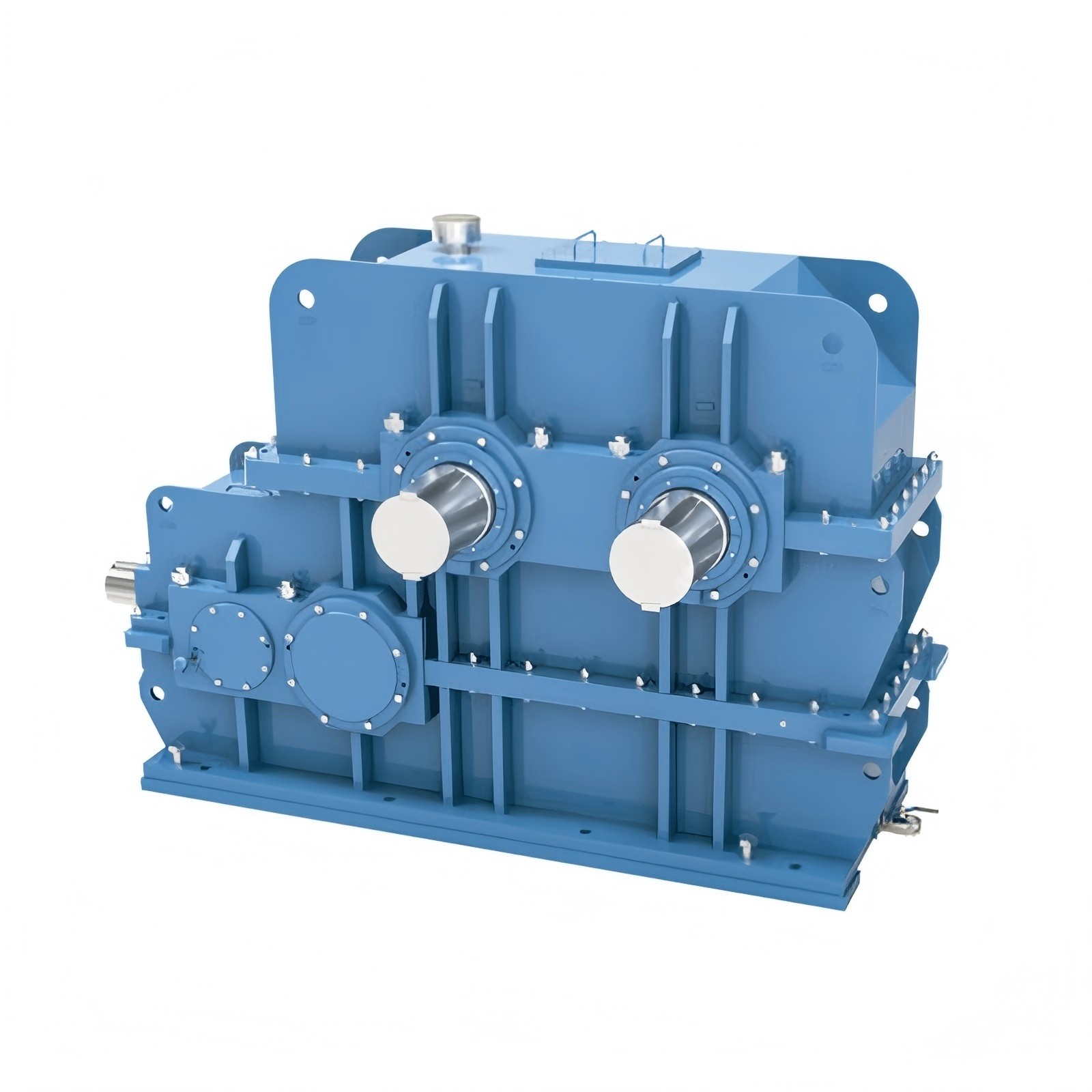

M Series Internal Mixer Gearboxes

This product series features a parallel cylindrical gear reduction transmission. The input shaft is connected to the motor shaft via a coupling system, driven by the motor. Through gear reduction and the power distribution between the two output shafts, power is transmitted to the internal mixer for rubber mixing.

Features:

Based on a standard platform, combining modular and special designs for greater economy and versatility;

Modular design, compact structure, short lead time;

The structure of all key parts has been optimized by means of finite element analysis, resulting in a more compact design;

Unique gear modification technology for improved meshing performance, providing smoother transmission and lower noise;

Designed with a multi-floating equal load mechanism, offering high carrying capacity. External components are all simple and reliable, enabling easy on-site operation and maintenance.

Main Technical Parameters:

Speed ratio range: 12.5–50

Rated power: 22–3,000 (kW)

Main Fields of Application:

Compatible with internal mixers for the mixing, plasticizing, and final mixing of rubber or plastics.
