GearSight1000 Series

Introduction

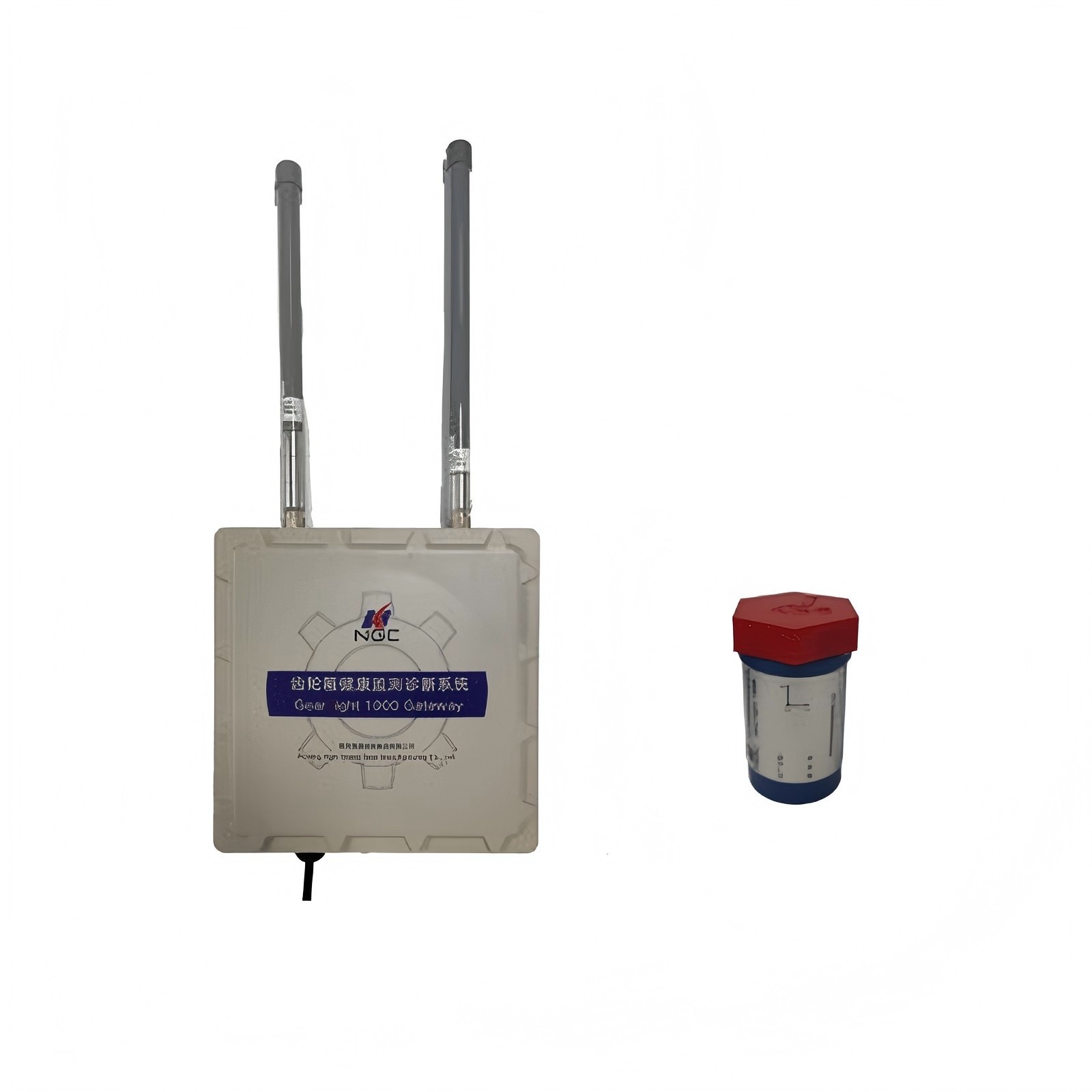

The GearSight1000 series products include wireless sensors and gateways, which support full WIFI/4G network connectivity.

The gateway is equipped with industrial grade wireless routing and an industrial grade DC isolated power supply, which not only guarantee good safety, but also enable wireless coverage and network switching.

The wireless sensor features WIFI networking to enable collection and transmission of spatial triaxial vibration acceleration signals and temperature data.

Performance Features

The system supports multiple forms of network transmission, and features a distributed architecture.

The high-performance industrial grade 32-bit communication processors and industrial grade wireless modules feature an embedded real-time operating system as a software support platform. One RS232 (or RS485), one Ethernet LAN, one Ethernet WAN, and one WIFI interface are available for connecting with various devices to achieve transparent data transmission and routing.

The wireless sensor uses WIFI networking, which is compatible with the digital factory WIFI network, enabling the collection and transmission of spatial triaxial vibration acceleration signals and temperature data. The installation is very flexible, and can be fixed with a magnetic holder or by threading.

The gateway is equipped with omnidirectional antennas to expand its coverage. The sensor nodes can collect temperature and vibration signals from gearbox measurement points in real time, and send this data and any other relevant information to remote platforms through the Internet.

The low-power design enables the system to operate at low frequencies for one year without needing to replace the batteries. In addition, the system features a detachable battery design, making it easy for users to replace the batteries themselves in high-frequency applications.
