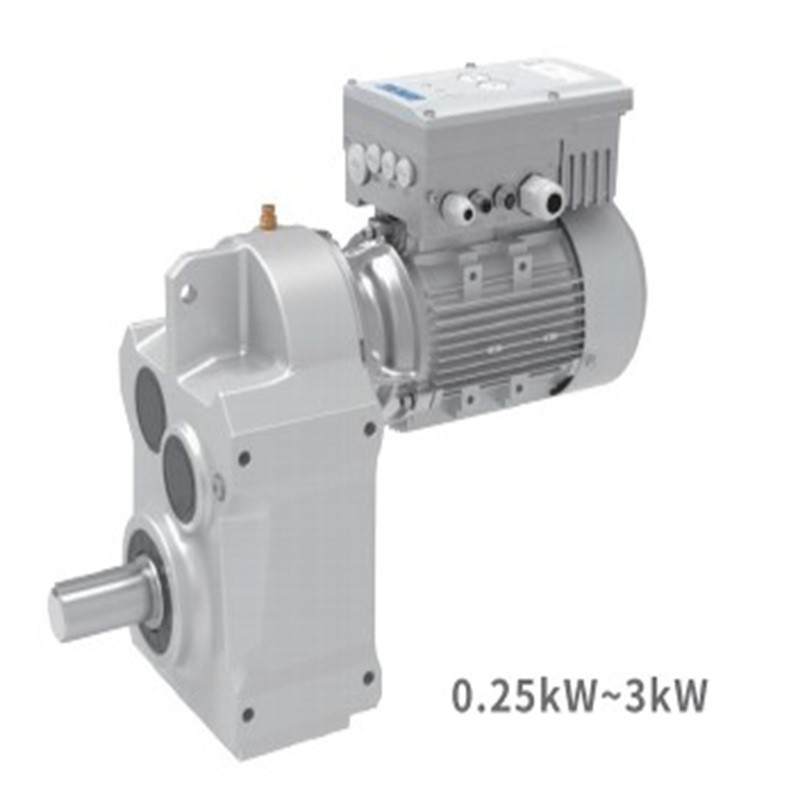

F307

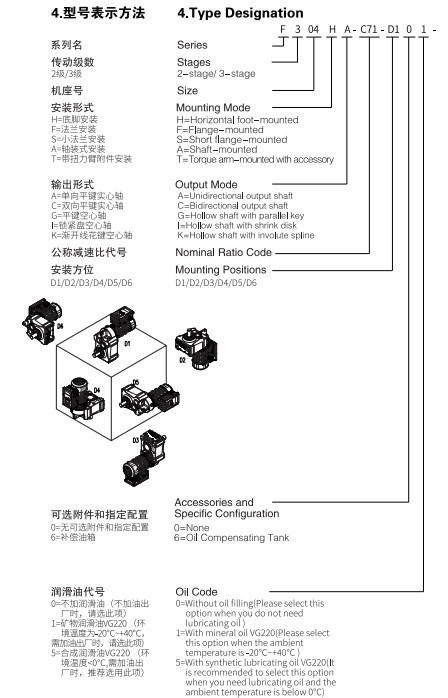

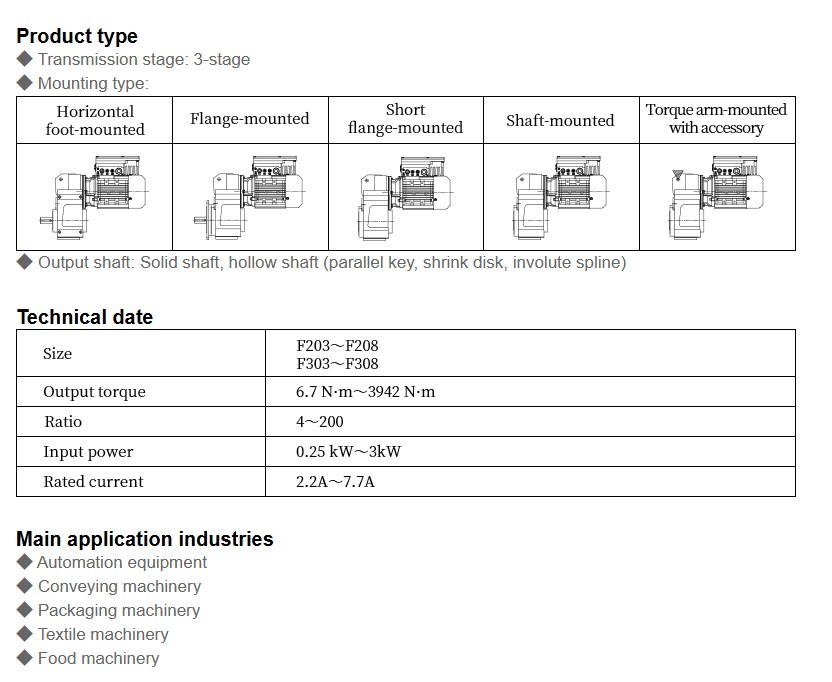

Model specifications

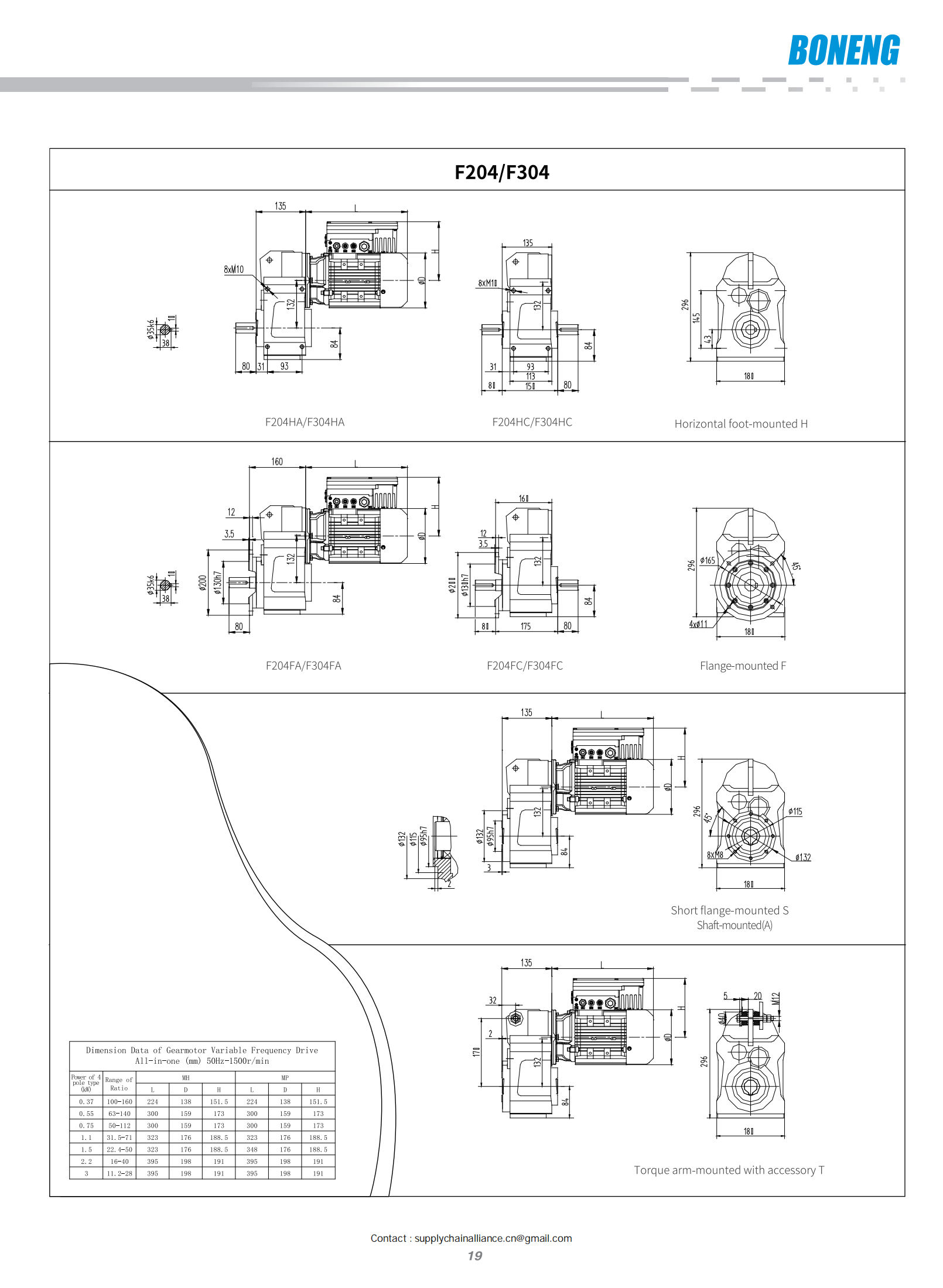

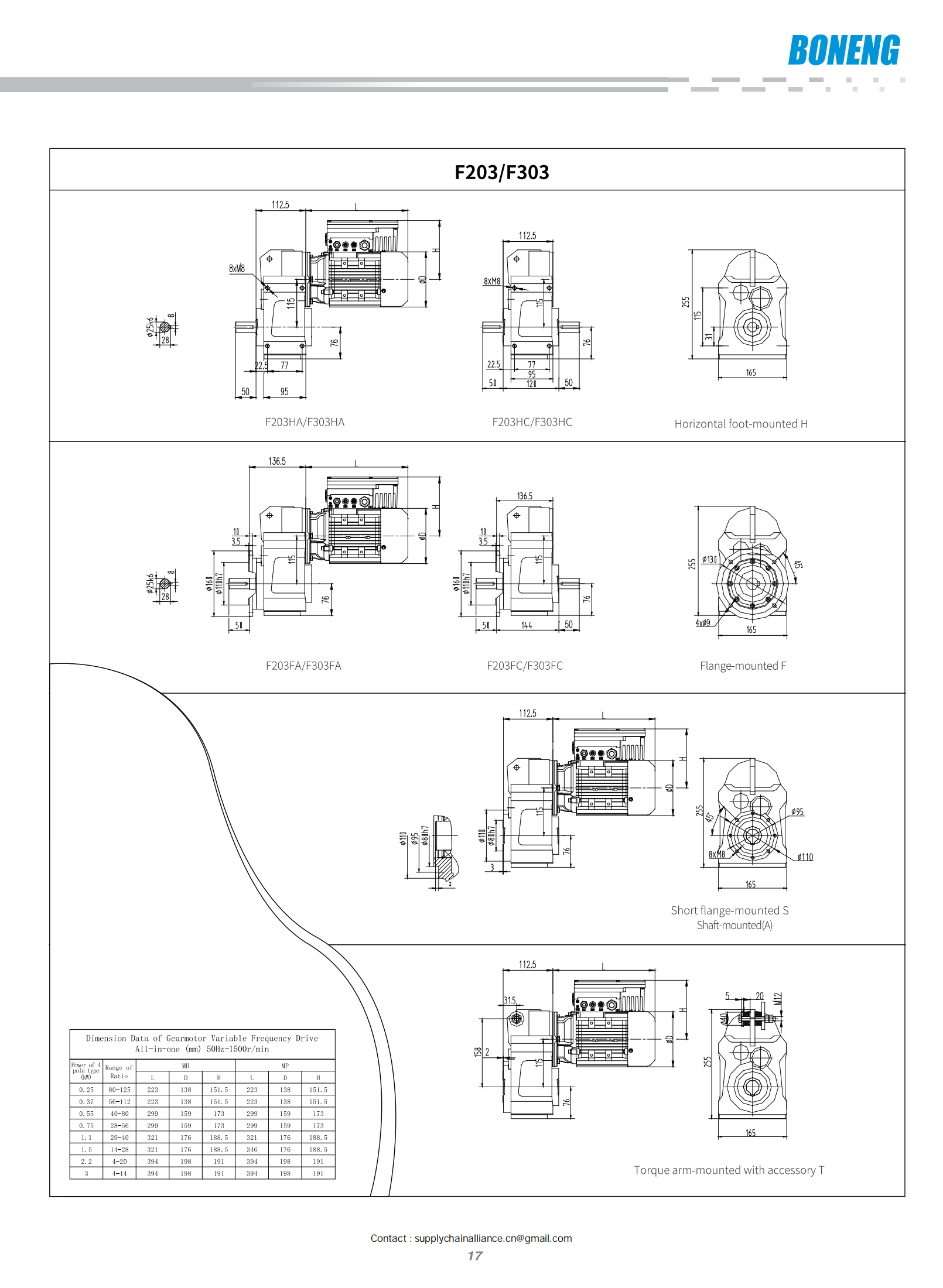

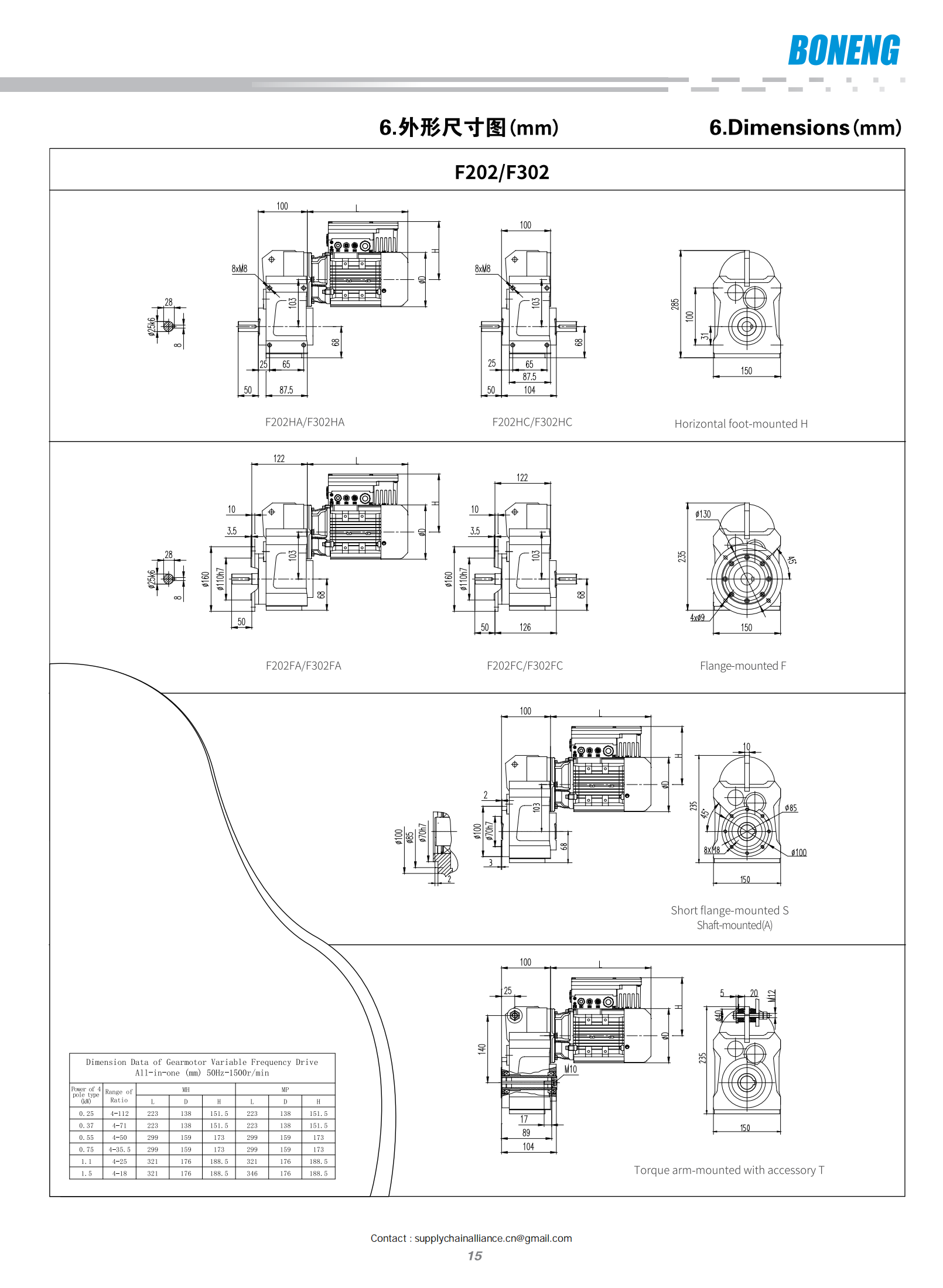

F202/F302,F203/F303,F204/F304

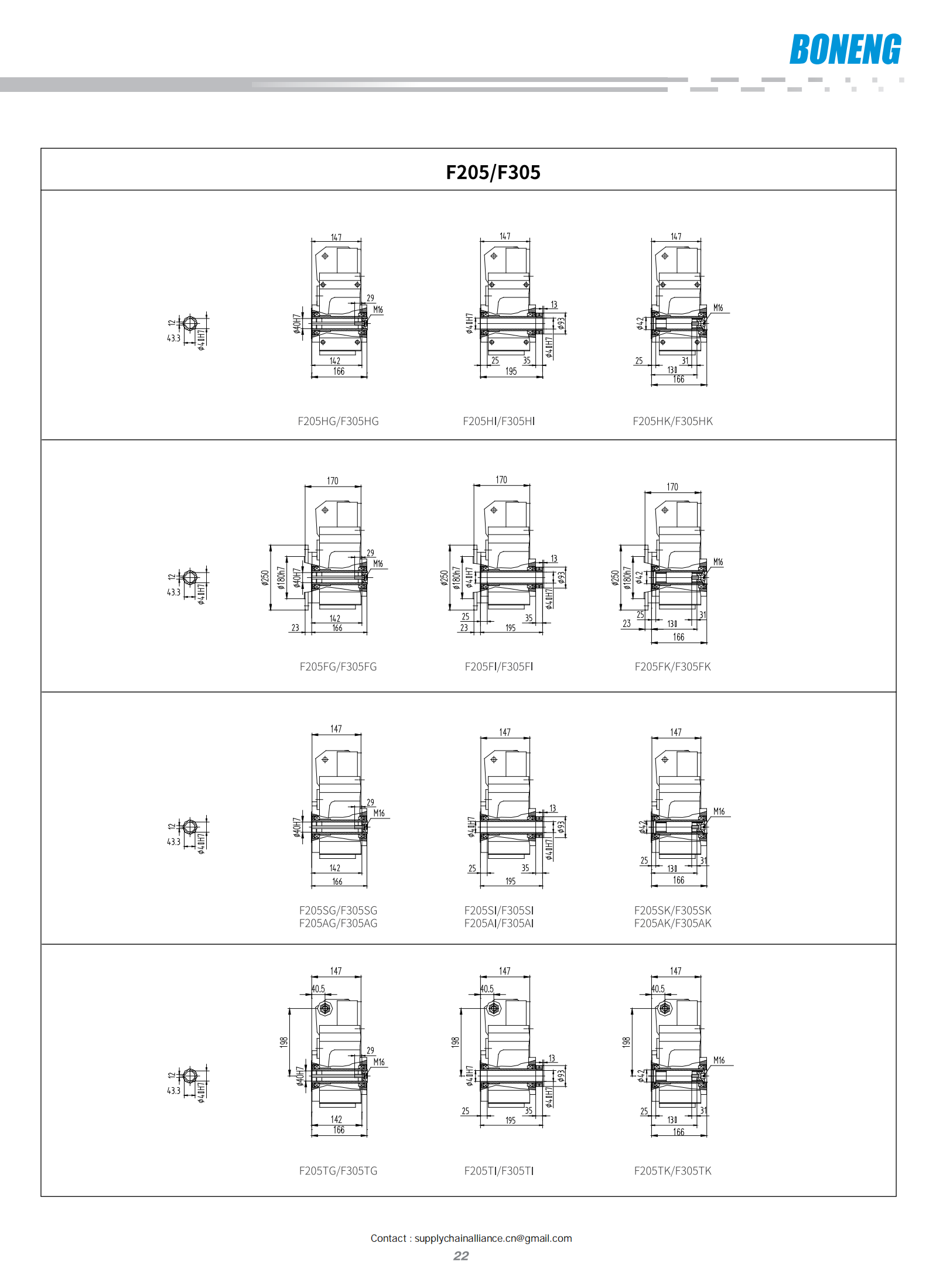

F205/F305,F206/F306,F207/F307,F208/F308

Characteristics

◆ High modular design, flexible mounting mode.
◆ Integrated casting housing,compact dimension,stable transmitting and low noise level.
◆ Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
◆ Advanced gear grinding and modified profile, high loading support and more safe operation.
◆ Support SVC(open-loop vector)control and VF control.
◆ Realize speed control.
◆ Support Modbus communication and EtherCAT communication.

◆ Support local upper computer connection.
