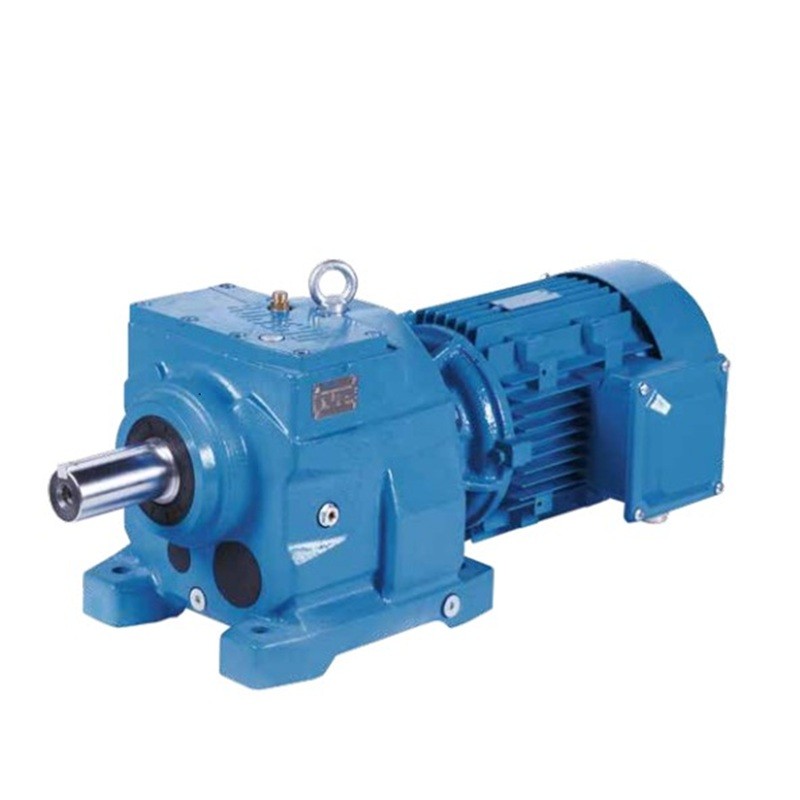

C312

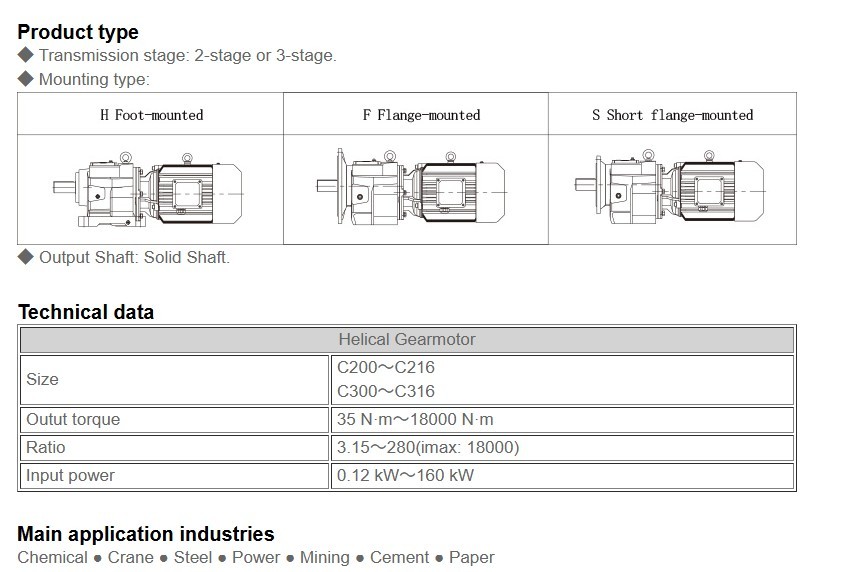

Model specifications

C103,C104,C106,C107,C108,C109,C110,C200/C300

C201/C301,C203/C303,C204/C304,C205/C305

C206/C306,C207/C307,C208/C308,C209/C309,C210/C310

C212/C312,C213/C313,C214/C314,C216/C316

Characteristics Features

◆ Low backlash gearmotor designed with flexible and modular concept.
◆ Excellent ecological design adds luster to your brand image.
◆ Small size and large center distance transmission structure, with 10% higher torque transmission capacity and load shock resistance.
◆ The FEA design of the casting housing, which improves the running stability by 30% and effectively reduces the noise of the whole machine.
◆ The large-modulus gear design and enhanced bearing arrangement ensure higher reliability and longer service life.
◆ Up to 95% modular design, international production, faster production and logistics cycles.
◆ Higher power density can save you mounting space and the overall structure is more compact.
◆ High reliability and long design life can effectively reduce your use and maintenance costs.
