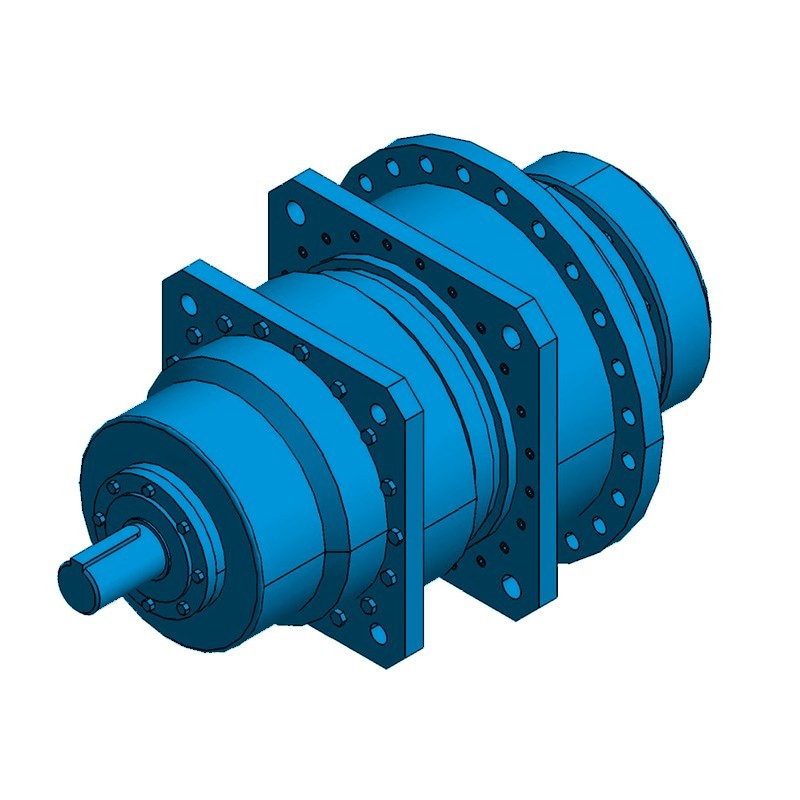

  • P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft
  • P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft
  • P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft
  • P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft
P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaftP2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaftP2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaftP2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft

P2NA07~36 (i: 25-40) P series planetary standard type (coaxial) with locking disk hollow shaft

  • Minimum order quantity:1 pieces
  • Quality assurance:1 year
  • Delivery time: 45 days
  • Rroduct packaging:plywood case
  • Payment terms:wire transfer T/T 100%
  • Offshore port:Shanghai port
  • Optional: Oil temperature sensor
  • Optional: Oil level sensor
  • Optional: Temperature sensor
  • Optional: Lubricating oil compensation system
  • Empowerment tool: 3D selection system
  • Attachment INQUIRY   EMAIL

Planetary Gearpox

1)The sun wheel and planetary wheel are made of high quality quenching alloy steel, the ring gears adopt in hardened surfacealloy steel, all grinding gears.
2)Cast iron housing and steel/cast iron frame,all designed by computer simulation and stress analysis method,which will enlarge the loading capacity.
3)Highly modular design makes althe spare parts standardization and reducing the stock. lmprove delivery speed.
4)All bearings using roller bearings, the force part are import brand bearing.
5)The input and output side with radial skeleton seal, wherein the
output double seals. Lots of accessories for choose and can be used with other products of our company.

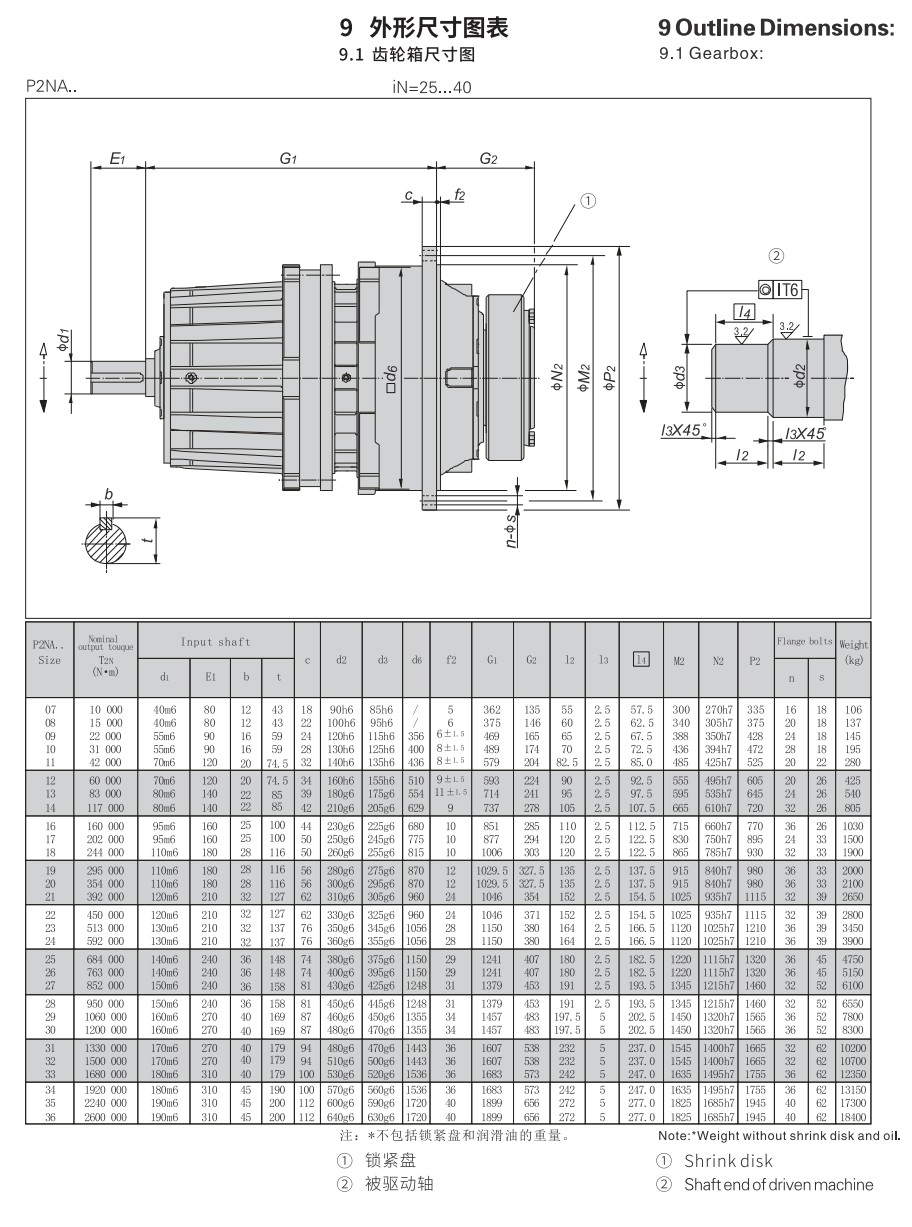

Specifications:
P2NA07 P2NA08 P2NA09 P2NA10 P2NA11 P2NA12 P2NA13 P2NA14 P2NA15 P2NA16 P2NA17 P2NA18 P2NA19 P2NA20 P2NA21
P2NA22 P2NA23 P2NA24 P2NA25 P2NA26 P2NA27 P2NA28 P2NA29 P2NA30 P2NA31 P2NA32 P2NA33 P2NA34 P2NA35 P2NA36

P2NA11,行星减速机,Planetary gearboxes,P2NA12,减速机系统,Gearbox systems,P2NA13,高性能行星减速机,High-performance gearboxes,P2NA14,精密行星齿轮,Precision planetary gears,P2NA15,工业减速机,Industrial gearboxes,P2NA16,紧凑型行星减速机,Compact planetary gearboxes,P2NA17,减速机制造商,Gearbox manufacturers,P2NA18,定制减速机,Custom gearboxes,P2NA19,伺服减速机,Servo gearboxes,P2NA20,行星减速齿轮组,Planetary gear sets,P2NA21,高扭矩减速机,High torque gearboxes,P2NA22,减速机设计,Gearbox design,P2NA23,迷你行星减速机,Miniature planetary gearboxes,P2NA24,减速机应用,Gearbox applications,P2NA25,行星减速机机制,Planetary gear mechanisms,P2NA26,高速减速机,High-speed gearboxes,P2NA27,减速机供应商,Gearbox suppliers,P2NA28,斜齿行星减速机,Helical planetary gearboxes,P2NA29,减速机技术,Gearbox technology,P2NA30,行星减速减速机,Planetary reduction gearboxes,P2NA31,机器人减速机,Robotic gearboxes,P2NA32,斜齿行星减速机,Bevel planetary gearboxes
P2NA33,减速机效率,Gearbox efficiency,P2NA34,直线式行星减速机,Inline planetary gearboxes,P2NA35,精密减速机,Precision gearboxes,P2NA36,直角行星减速机,Right angle planetary gearboxes
